Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-75
Service Parts Disassembly
Registration Roller
PL3.2.9 (Roll Assy Regi)
Note
This procedure applies to both the SFP and MFP.
1. Remove the Upper Frame Assembly (SFP page 8-51; MFP page 8-67).
Note
The Registration Out Actuator is tensioned by a small spring located
under the actuator.

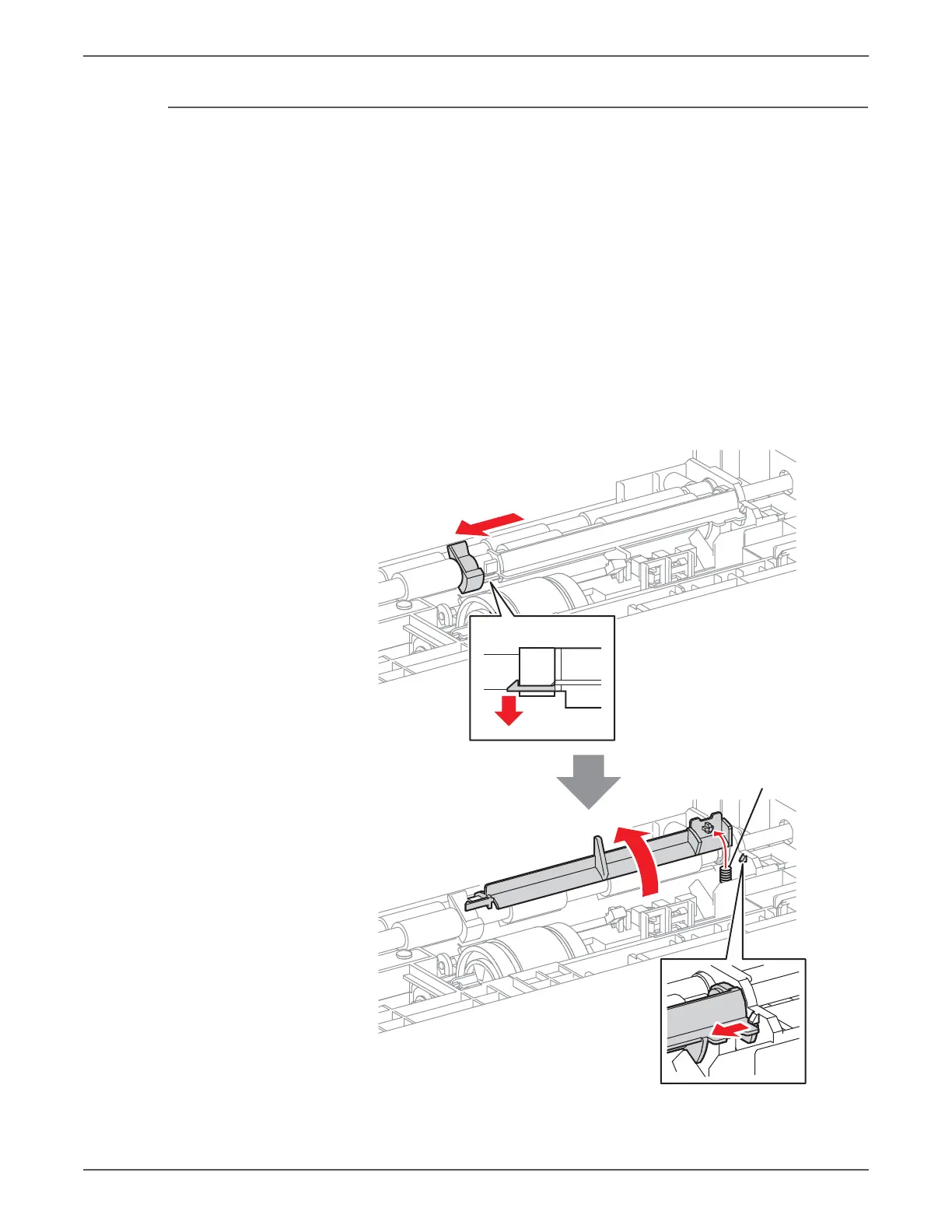

2. Release the hook on the Registration Out Actuator that attaches it to the
Registration Roller Actuator; shift the Registration Roller Actuator to the right.
3. Release the Registration Out Actuator from the hook on the Upper Feeder
Chute, then rotate the Registration Out Actuator in the direction shown.
s6500-366
Registration Out Spring

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
