1-14 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Information
Duplex Unit

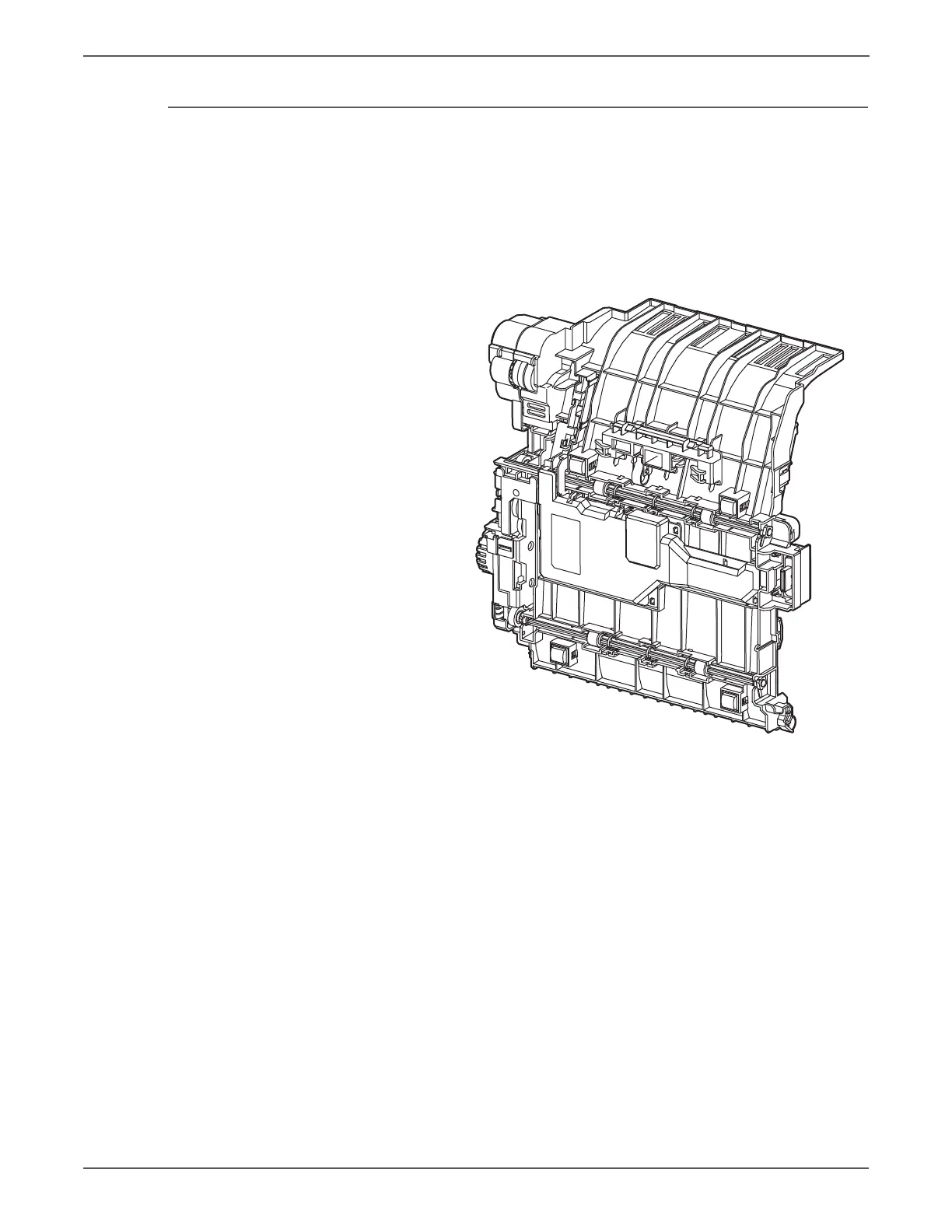

The Duplex Unit attaches to the Front Cover and is held in place by a single latch.
Features on the Transfer Belt engage the Duplex Unit to properly align the media
path. Electrical connection to the printer is made by a single interface connector
When installing the Duplex Unit for the first time, be sure to remove the
protective cap from the connector inside the Front Cover.
s6500-012
