Print-Quality Troubleshooting

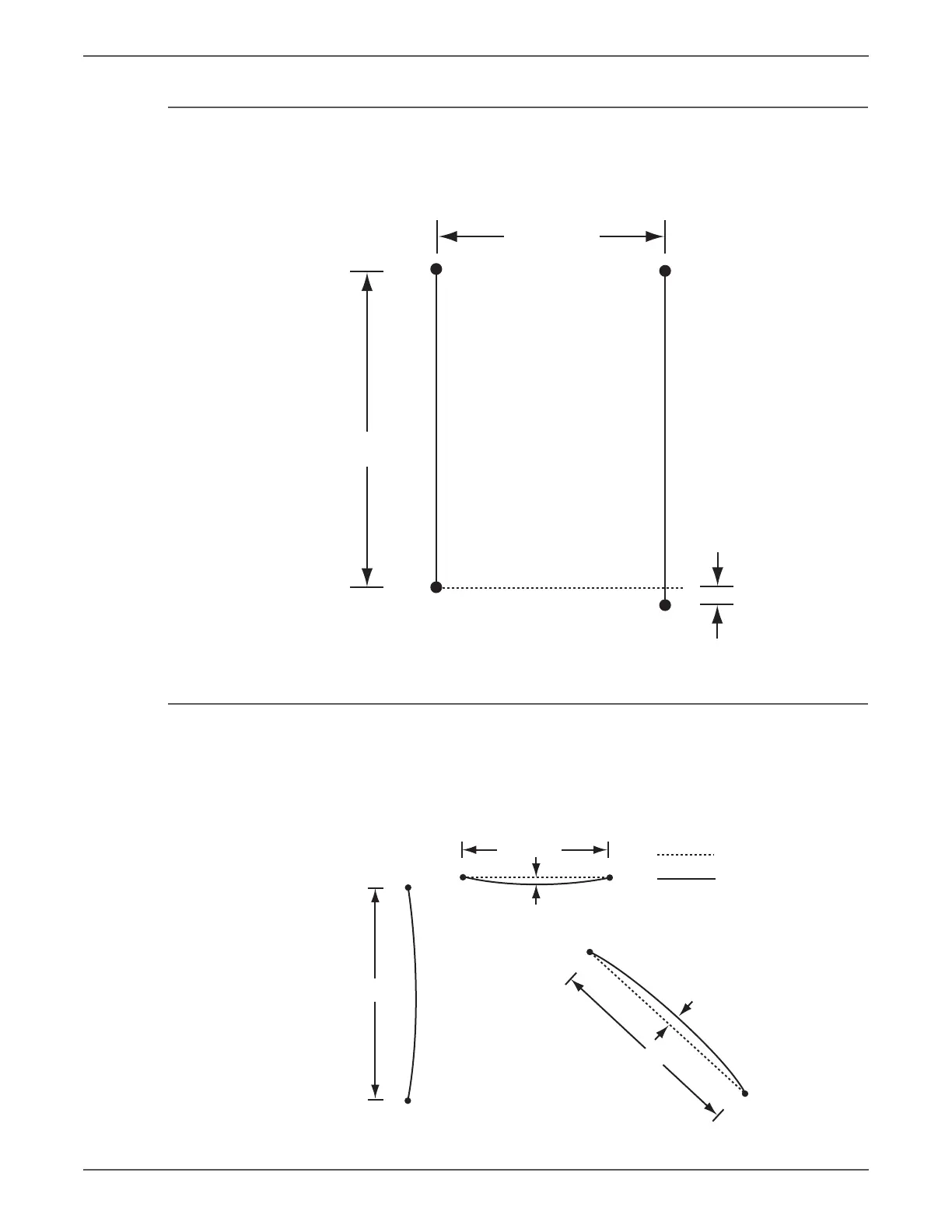

Parallelism
• Horizontal: 180 mm ± 1.2 mm
• Vertical: 280 mm ± 1.2 mm
Linearity
• Horizontal: 190 mm ± 0.5 mm
• Vertical: 234 mm ± 0.5 mm
• Slant: 269 mm ± 1.2 mm
s6500-159
280 mm
180 mm
I
K
C
Parallelism
(within ±1.2 mm)
s6500-160
B
E
G
J
H
D
180 mm
280 mm
254.5 mm
Linearity of
Vertical Line (mm)
(within ±0.5 mm)
Linearity of Horizontal Line (within ±0.5 mm)
Linearity of Slant
(within ±1.1 mm)
Assumed Perfect Line
Printed Real Line
