Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 5-45

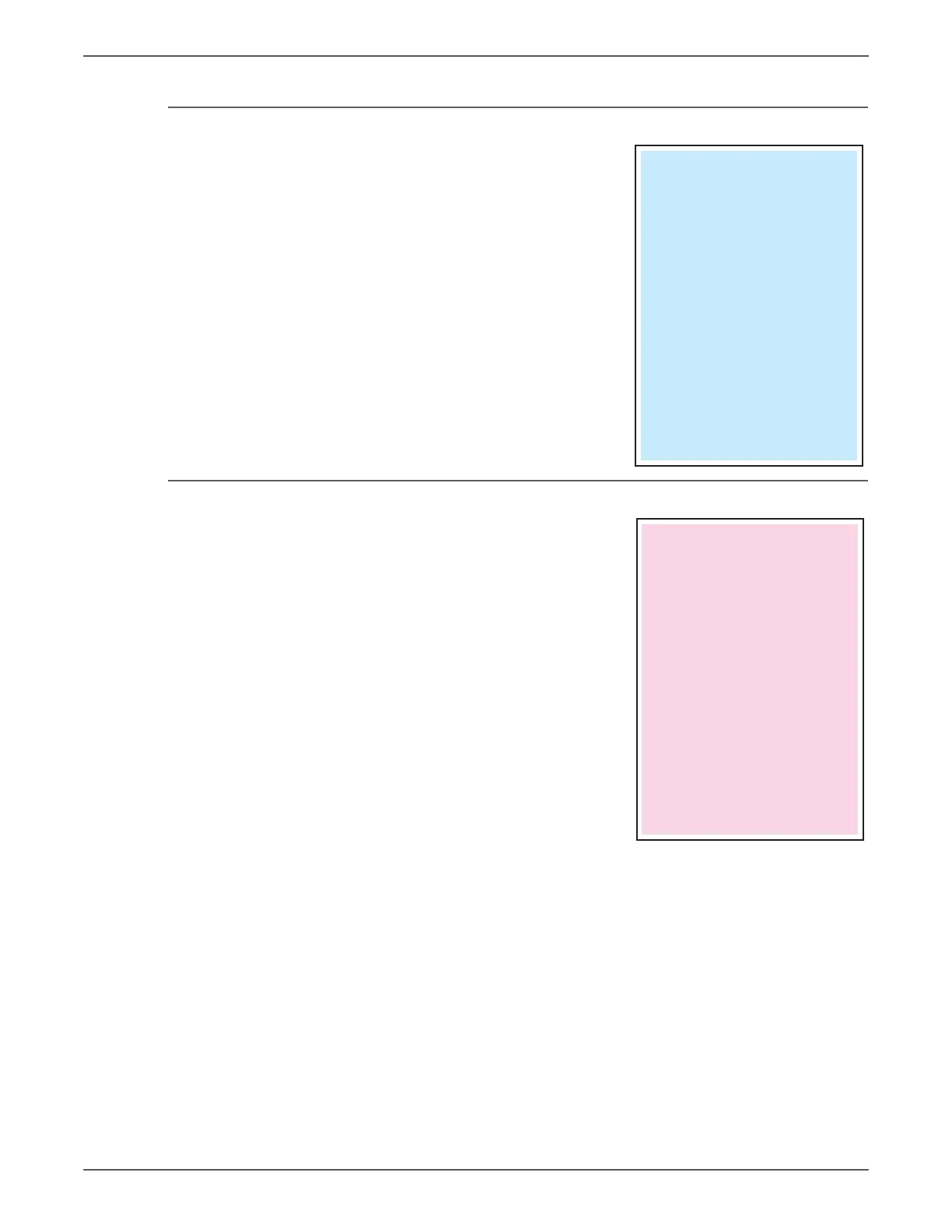

Print-Quality Troubleshooting
Cyan 20% ESS Test Print
This test print provides 20% Cyan density
on the whole page. This test is used to
identify problems with Cyan toner or
another color toner. Compare the print with
this example to determine the problem.
• Fail: Check the Cyan Toner Cartridge.
• Pass: Check another Toner Cartridge.
Magenta 20% ESS Test Print
This test print provides 20% Magenta
density on the whole page. This test is used
to identify problems with Magenta toner or
another color toner. Compare the print with
this example to determine the problem.
• Fail: Check the Magenta Toner
Cartridge.
• Pass: Check another Toner Cartridge.
s6500-143
s6500-144

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
