Xerox WorkCentre 6505 Service Manual

8-144 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
MFP Image Processor Board
MFP PL8.1.2 (PWBA ESS AIO)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-37).
4. Remove the Outer Pole Cover (page 8-39).
5. Remove the Rear Cover (page 8-43).
6. Remove the IP Board Shield (page 8-142).
7. Remove the Fax Board (page 8-143).
8. Unplug all connectors from the Image Processor Board.
9. Release the hook of the USB Harness Guide (PL8.4.5), remove the guide from
the printer.

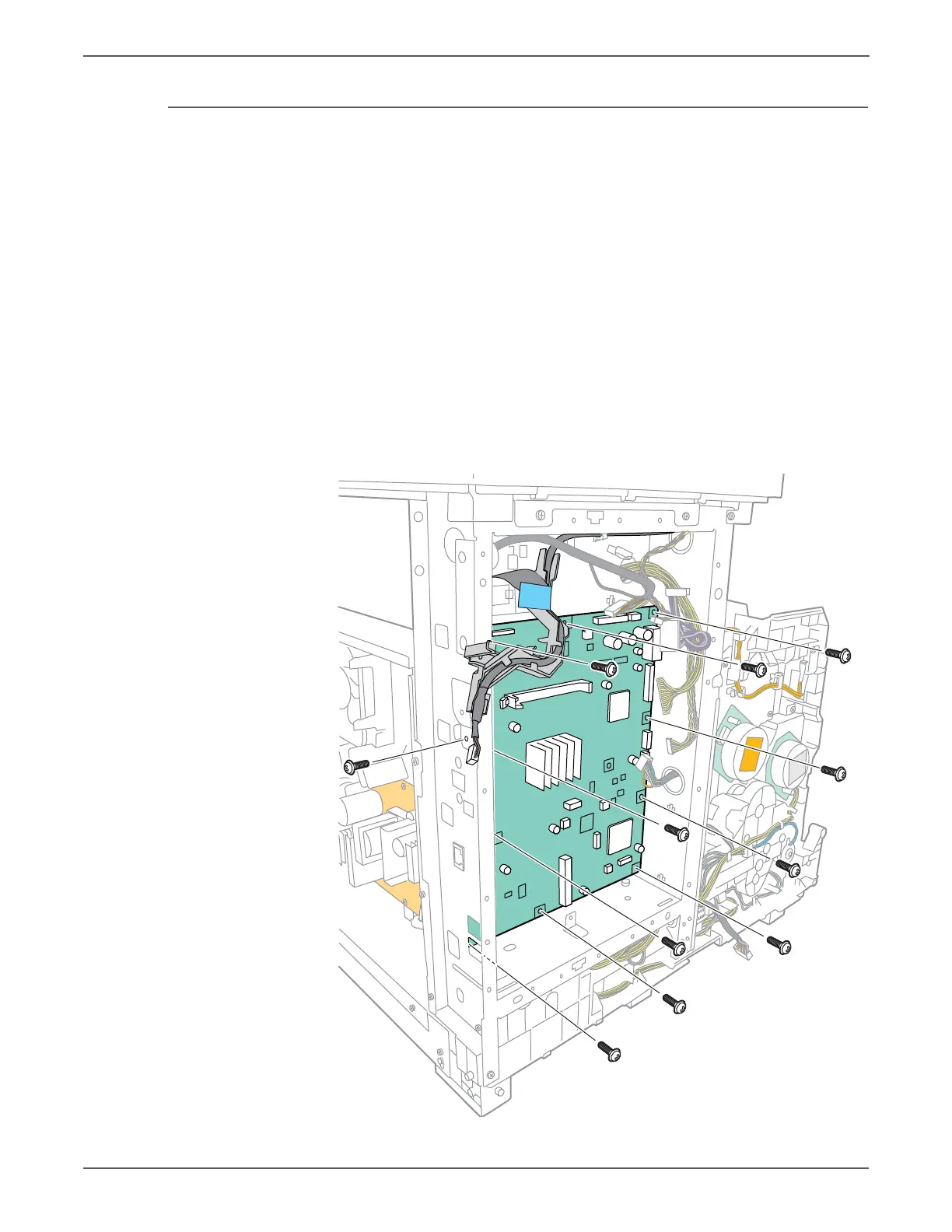

10. Remove the ten screws (silver, 6mm) that attach the Image Processor Board to
the chassis.
11. At the rear of the printer, remove the screw (silver, 4mm) that secures the USB
connector to the Card Cage and remove the board.
s6500-333
http://www.manuals4you.com
