Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-39
Service Parts Disassembly

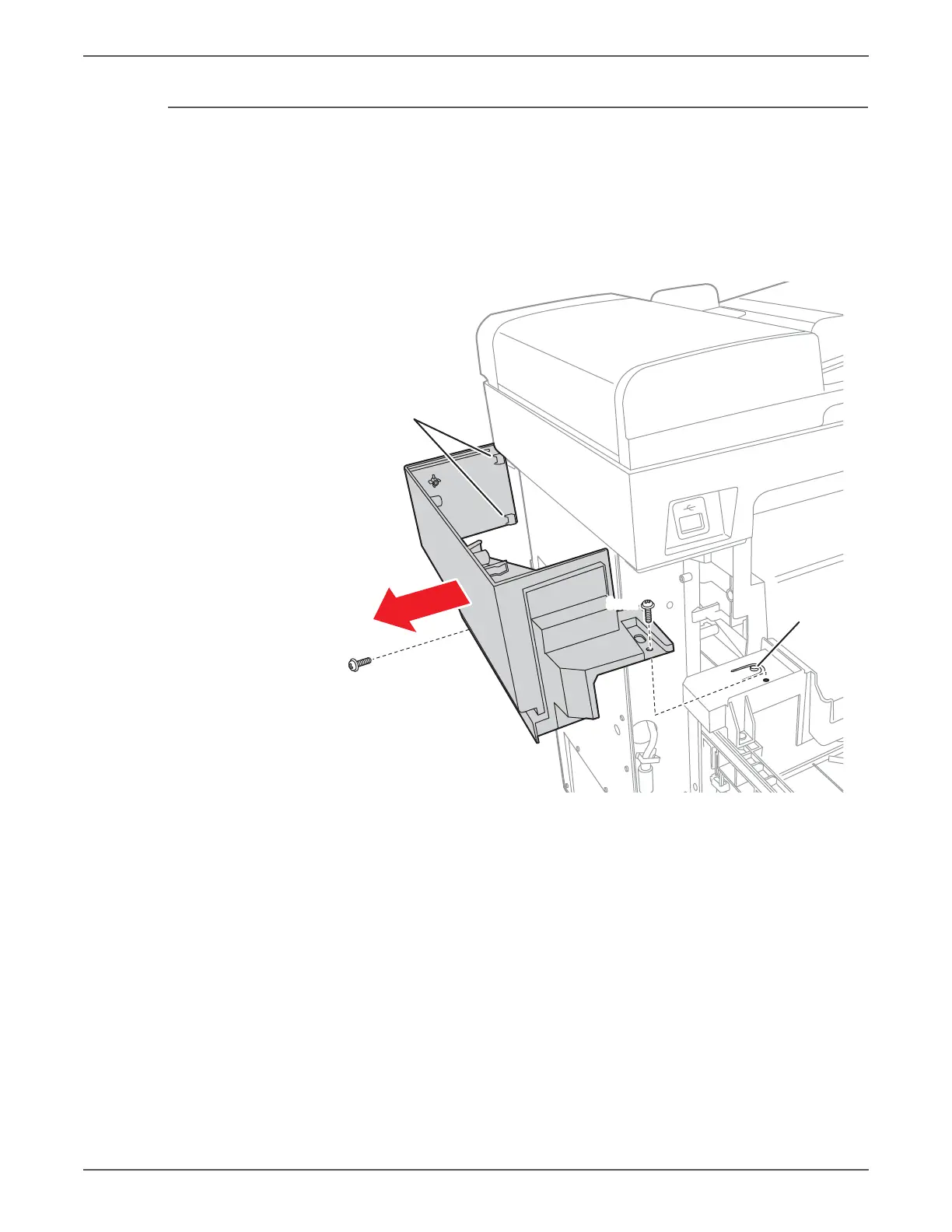

Outer Pole Cover
MFP PL 1.1.1 (Cover Pole Outer)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-18).
4. Remove the two screws (silver, 6mm, and silver, tap, 8mm) that secure the
Outer Pole Cover.
5. Use a screwdriver to push the boss of the Top Cover (PL10.1.4) and release the
front of the Outer Pole Cover.
6. Release the 2 hooks that secure the Outer Pole Cover at the back to remove
the cover.
Replacement Note
Engage the 2 hooks on the back side of the Outer Pole Cover first.
s6500-217
Boss
Hooks
6mm
8mm8mm

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
