Xerox WorkCentre 6505 Service Manual

8-72 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Paper Feeder
SFP Feeder Assembly
PL3.1.98 (SFP Feeder Assy)
1. Remove the Upper Frame Assembly (page 8-51).
2. Remove the Front Cover (page 8-22).
3. Release the Control Panel Harness B from the guides in the Feeder Assembly.

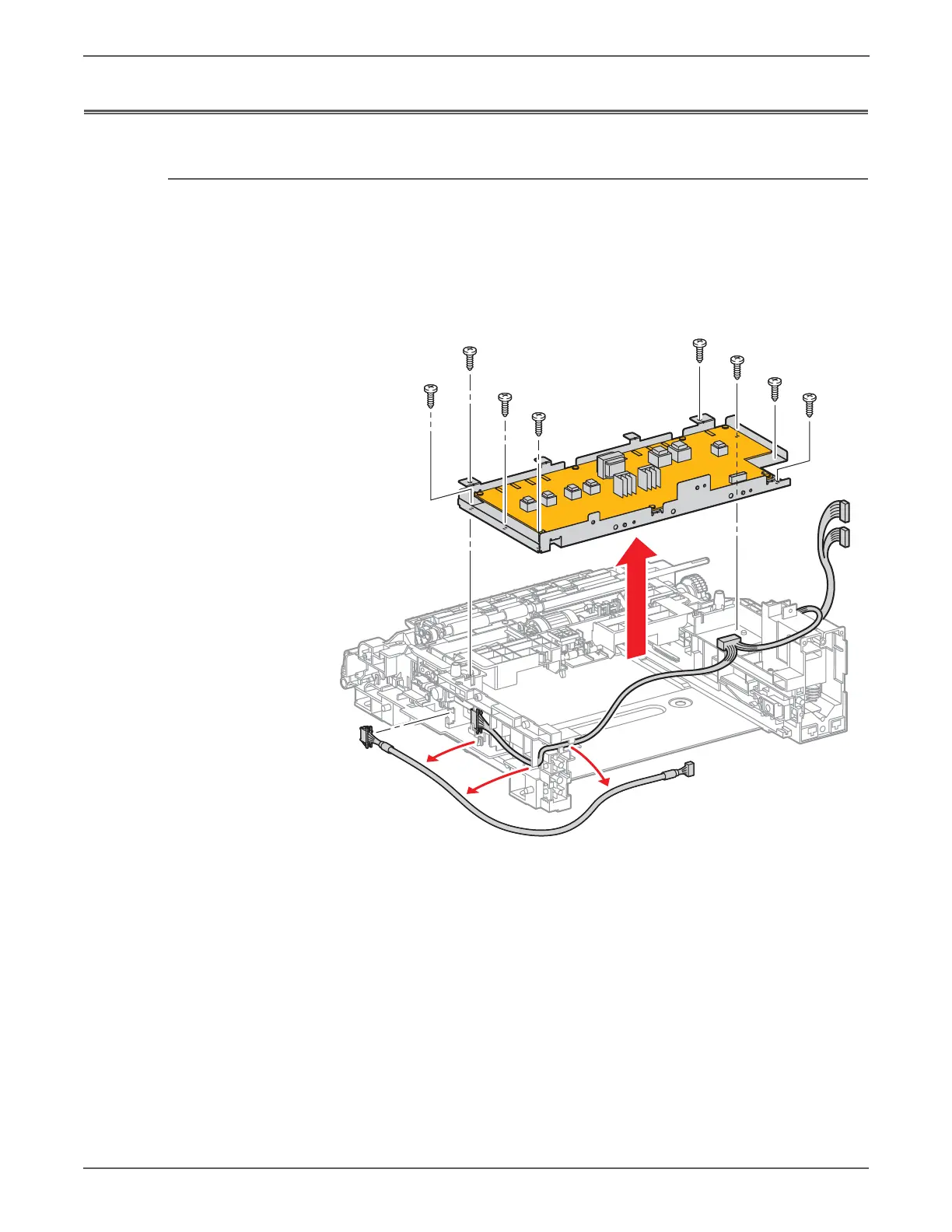

4. Remove the HVPS Frame (page 8-137).
Replacement Note
Align 4 holes in the HVPS Frame with 4 bosses on the Feeder Assembly before
replacing the HVPS and 8 screws.
s6500-239
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
