Service Parts Disassembly

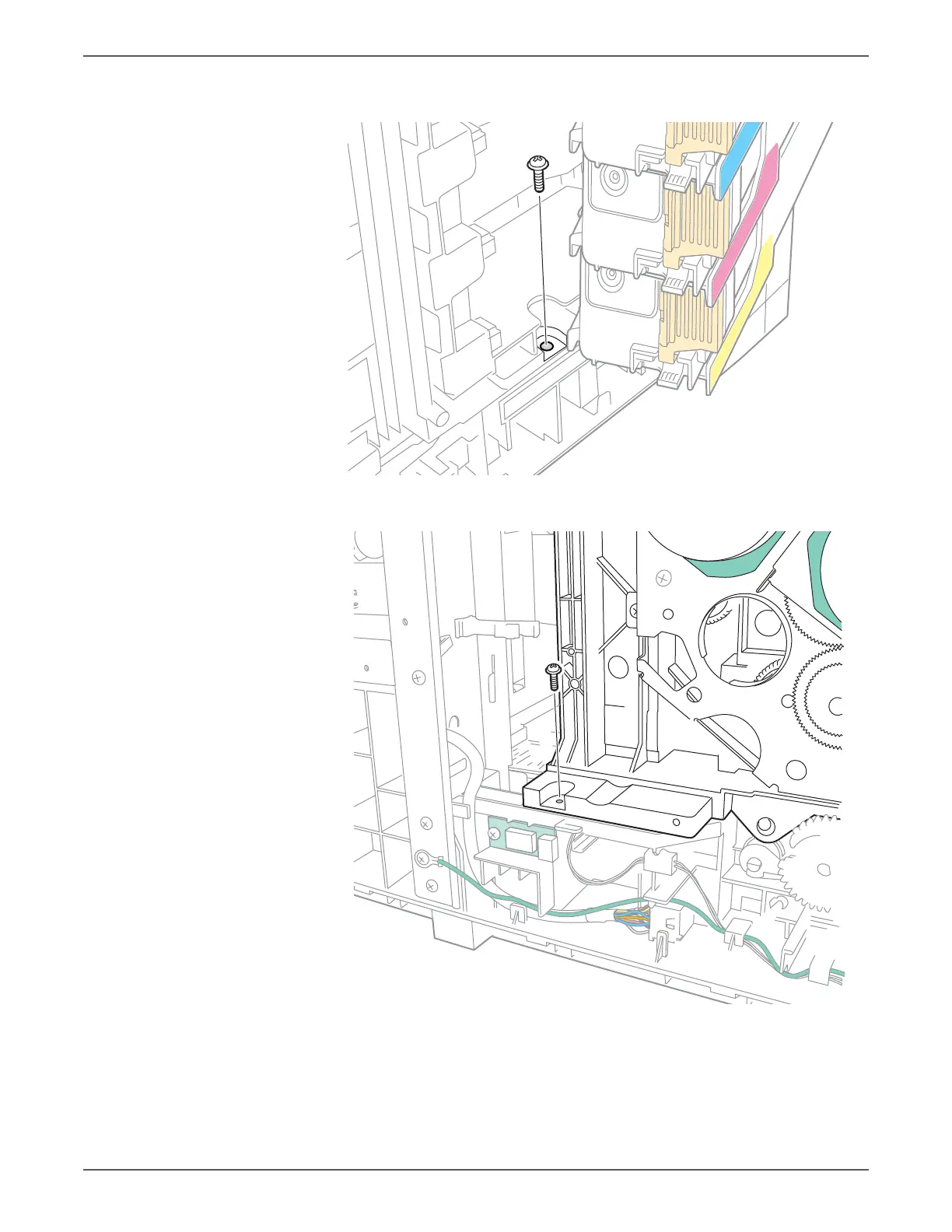

23. Open the Toner Cartridge Holders and remove the screw (silver, tap, 8mm)
that secures the right side of the frame.
24. Remove the screw (silver, tap, 8mm) that secures the left side of the upper
frame.
25. Lift the upper frame from the chassis.
To simplify the task of lacing the harnesses around the Dispense Assembly
during reassembly, remove the Laser Unit from the Upper Frame Assembly
(page 8-92).
