Xerox WorkCentre 6505 Service Manual

2-10 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation
• Bias Transfer Roller (BTR) – The BTR is a conductive roller that receives positive
voltage from the HVPS. The BTR contacts the rear side of the Belt and applies
the positive voltage to the Belt.

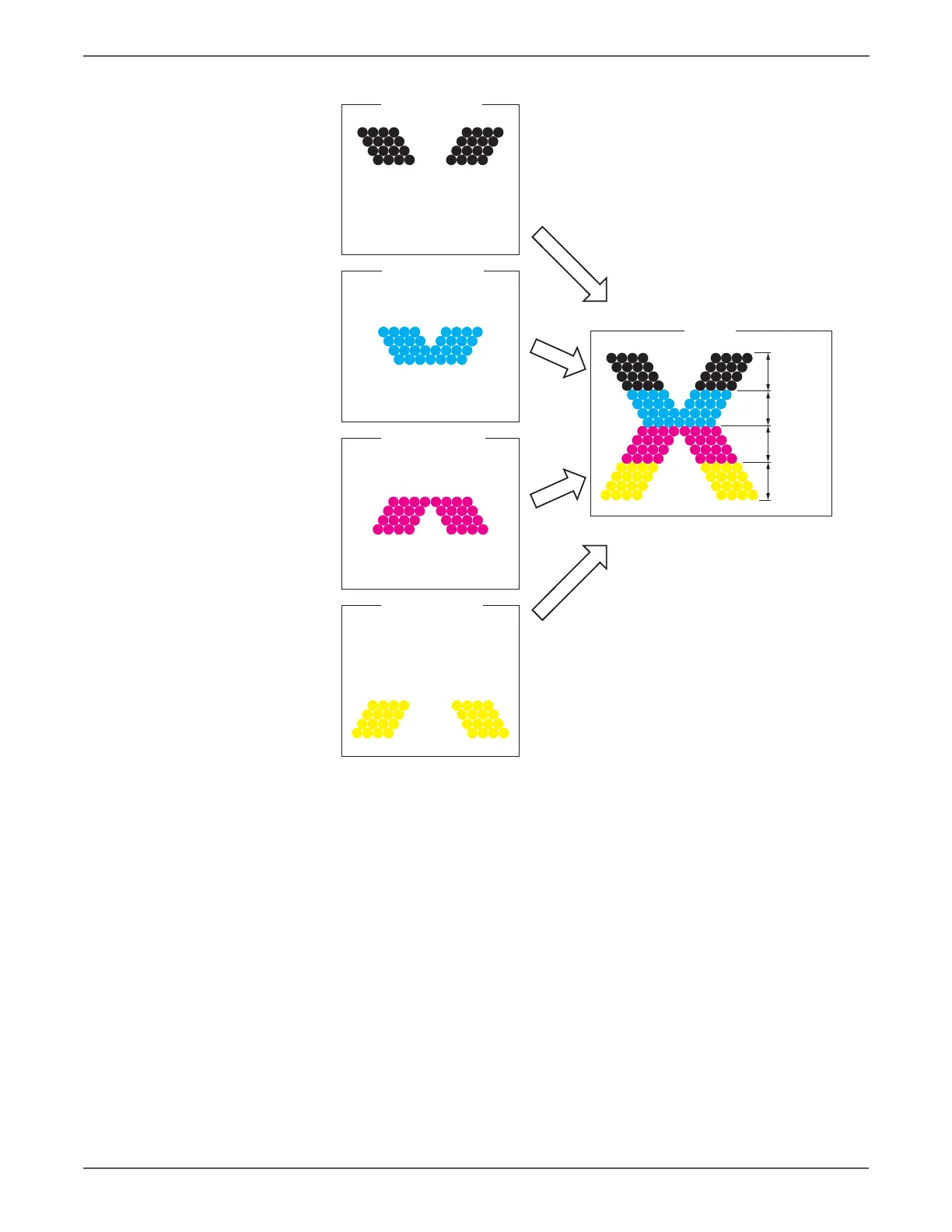

• Belt – The belt is a conductive unit that receives positive voltage from the BTR.
After the negative charged toner image on the drum surface is drawn by the
positive charge on the belt, it is transferred from the drum to the paper. The
Transfer Belt feeds the paper toward the Fuser.
s6500-027
Drum Surface
(Black Toner Image)
Drum Surface
(Cyan Toner Image)
Drum Surface
(Magenta Toner Image)
Drum Surface
(Yellow Toner Image)
Paper
Black
Toner Image
Cyan
Toner Image
Magenta
Toner Image
Yellow
Toner Image
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
