Xerox WorkCentre 6505 Service Manual

8-134 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

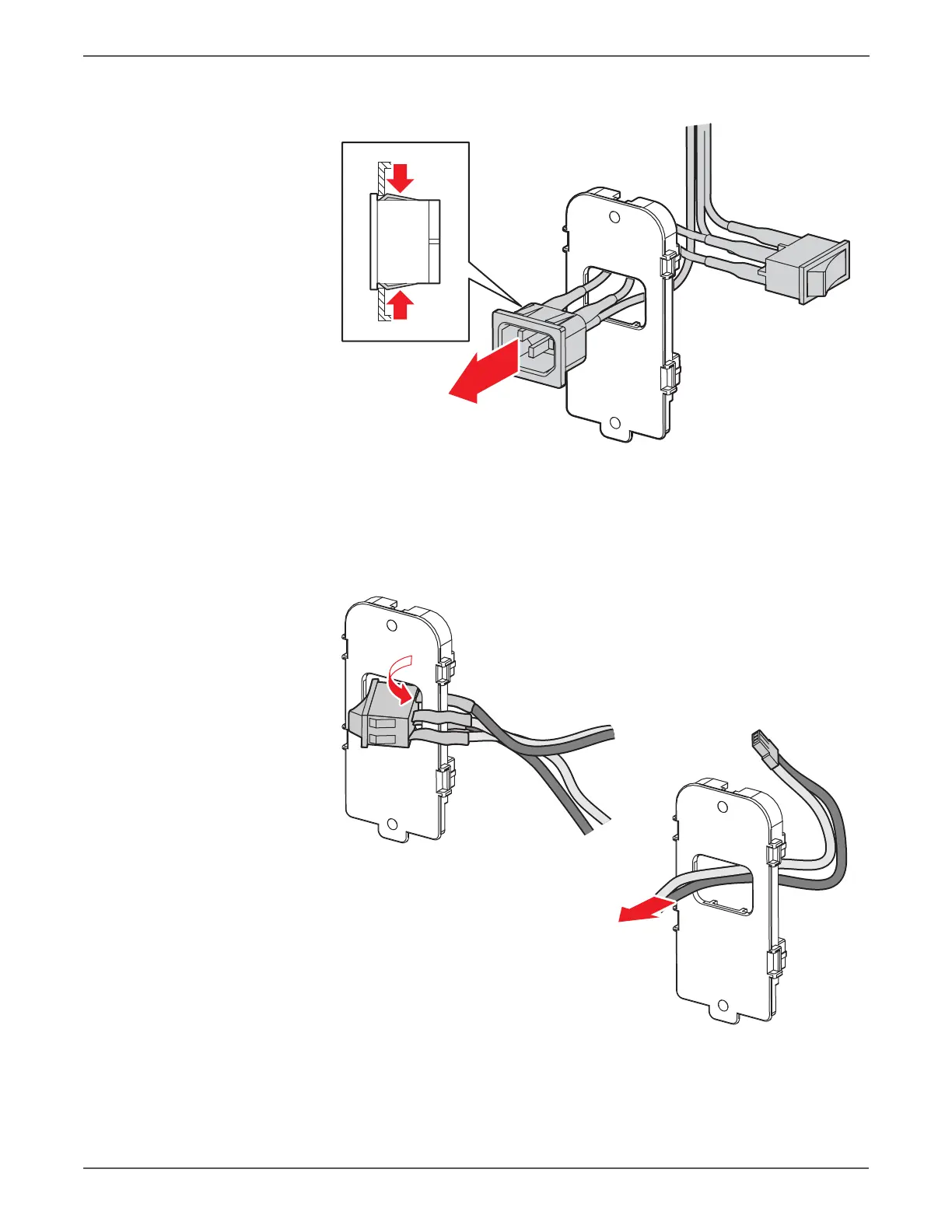

16. Squeeze the hooks on the AC Inlet to release it from the Inlet Cover.
17. Pull the harness, power switch, and connector (J48) out through the hole in the
Inlet Cover.
Note
Pull the ground wire out of the hole first to ease fitting the switch through
the hole.
Replacement Note
Make sure that the “I” and “O” symbols on the bracket and switch are aligned
before installing the switch in the bracket.
s6500-320
s6500-321
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
