Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-35
Service Parts Disassembly

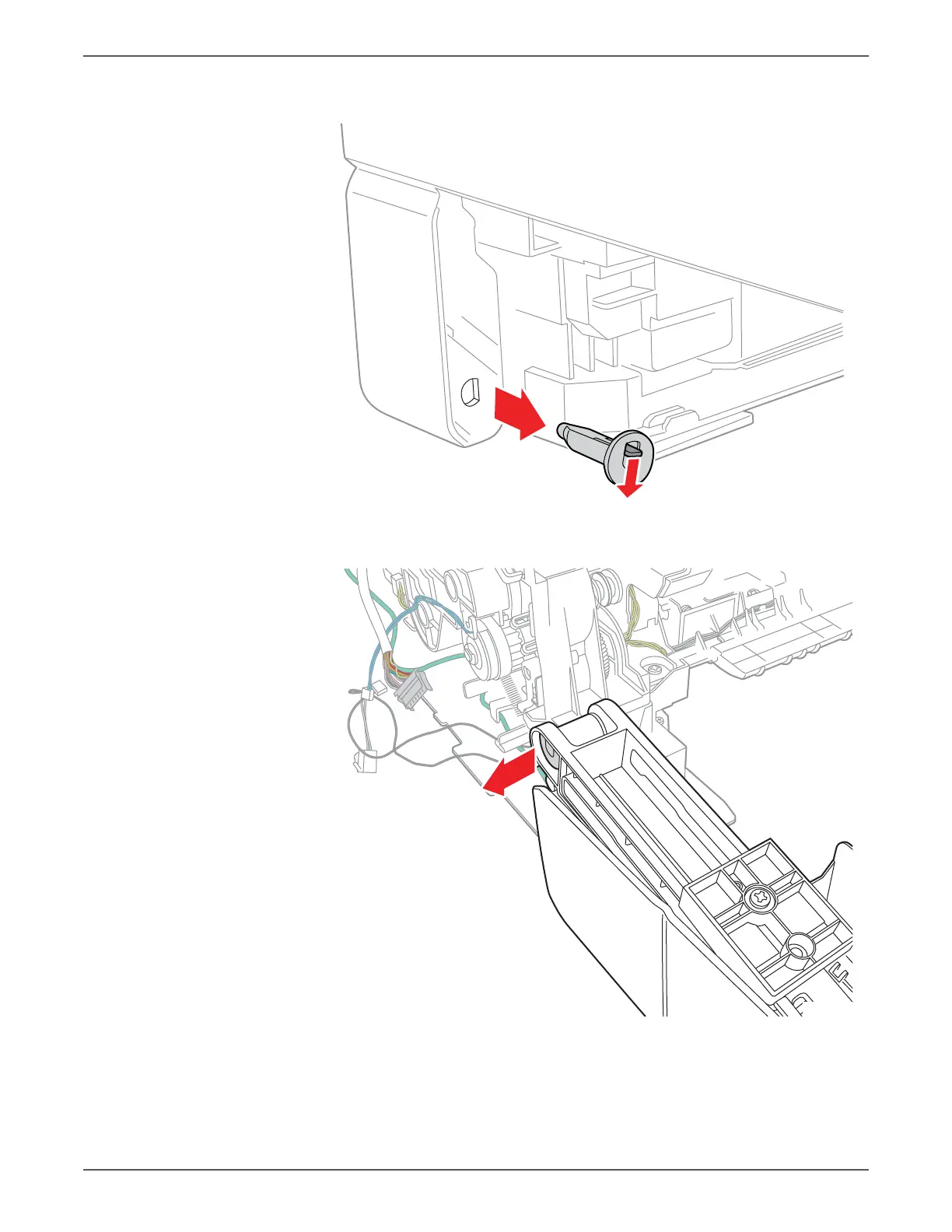

10. Release the Pivot Shaft hook on the Left and Right Pivot Shafts, and pull the
pivot shafts out of the Front Cover.
11. Release the Pivot Shaft hook and pull out the Pivot Shaft that attaches the
MFP Front Link Assy.
s6500-213
1
2
s6500-212
