Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-93
Service Parts Disassembly

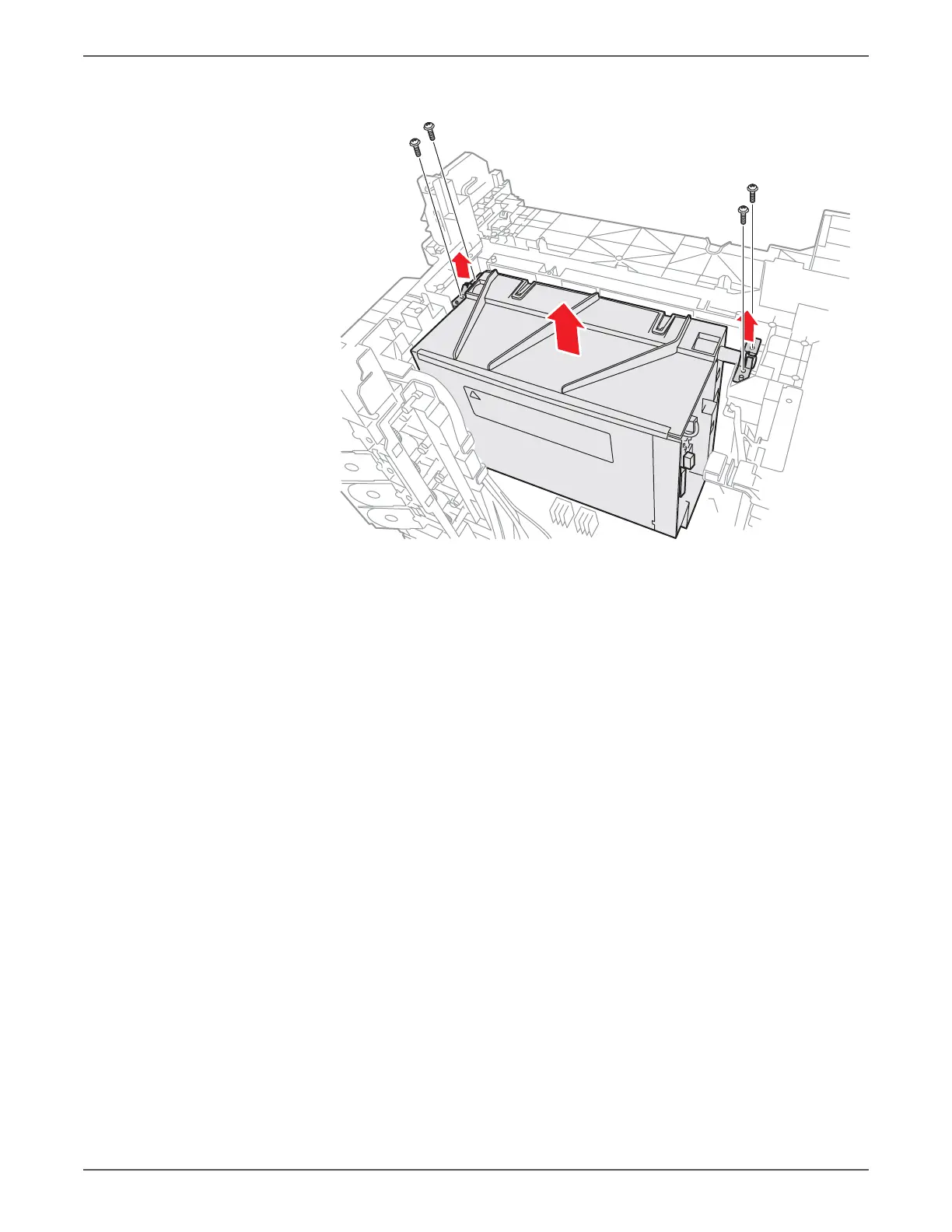

14. Remove four screws (silver, tap 8mm) that secure the left and right Springs
and remove the Springs.
15. Lift the Laser Unit from the chassis.
Note
Perform the following step only if you are replacing the existing Laser Unit
with a new one. Harnesses are not included with the replacement part.
16. Disconnect the 2 Laser Unit harnesses from the Laser Unit (P/J411 and
P/J412).
s6500-272

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
