Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-59
General Troubleshooting

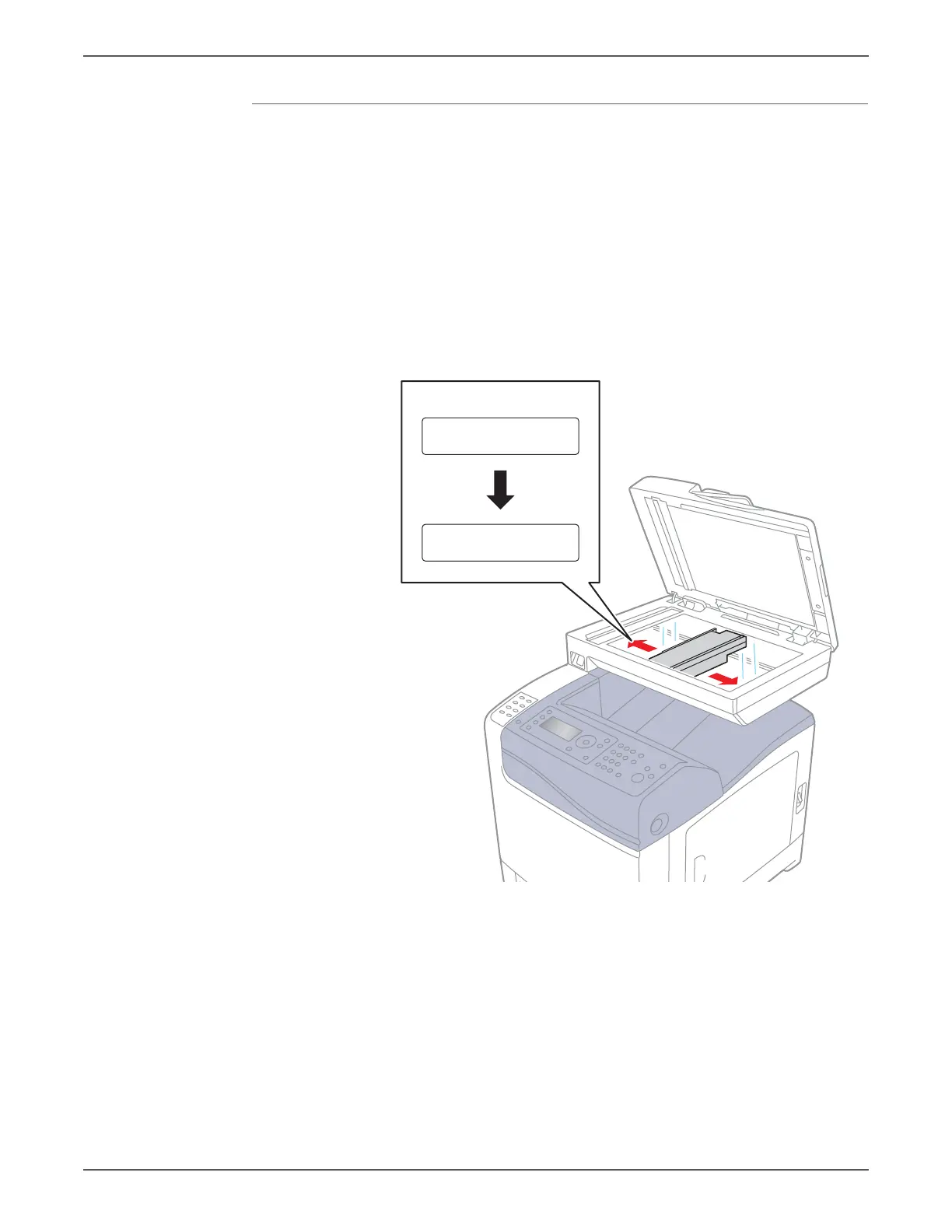

Home Position Sensor
1. Enter Service Diagnostics (page 4-8).
2. Open the Platen Cover.
3. Move the carriage forward with the FB Motor test.
4. Perform the Fax/Scanner Diag > Scanner Maintenance > IIT I/O Check
>Home Position Sensor test.
5. Check the ControL Panel display for Status OFF.
6. Press Stop to return one step higher menu.
7. Reverse the carriage with the FB Motor test.
8. Perform the Fax/Scanner Diag > Scanner Maintenance > IIT I/O Check
>Home Position Sensor test again.
9. Check the ControL Panel display for Status ON.
10. Press the Stop button to stop the Home Position Sensor test.
s6500-098
Control Panel
Normal
Home Position Sensor
Status OFF
Home Position Sensor
Status ON

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
