Xerox WorkCentre 6505 Service Manual

2-30 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation

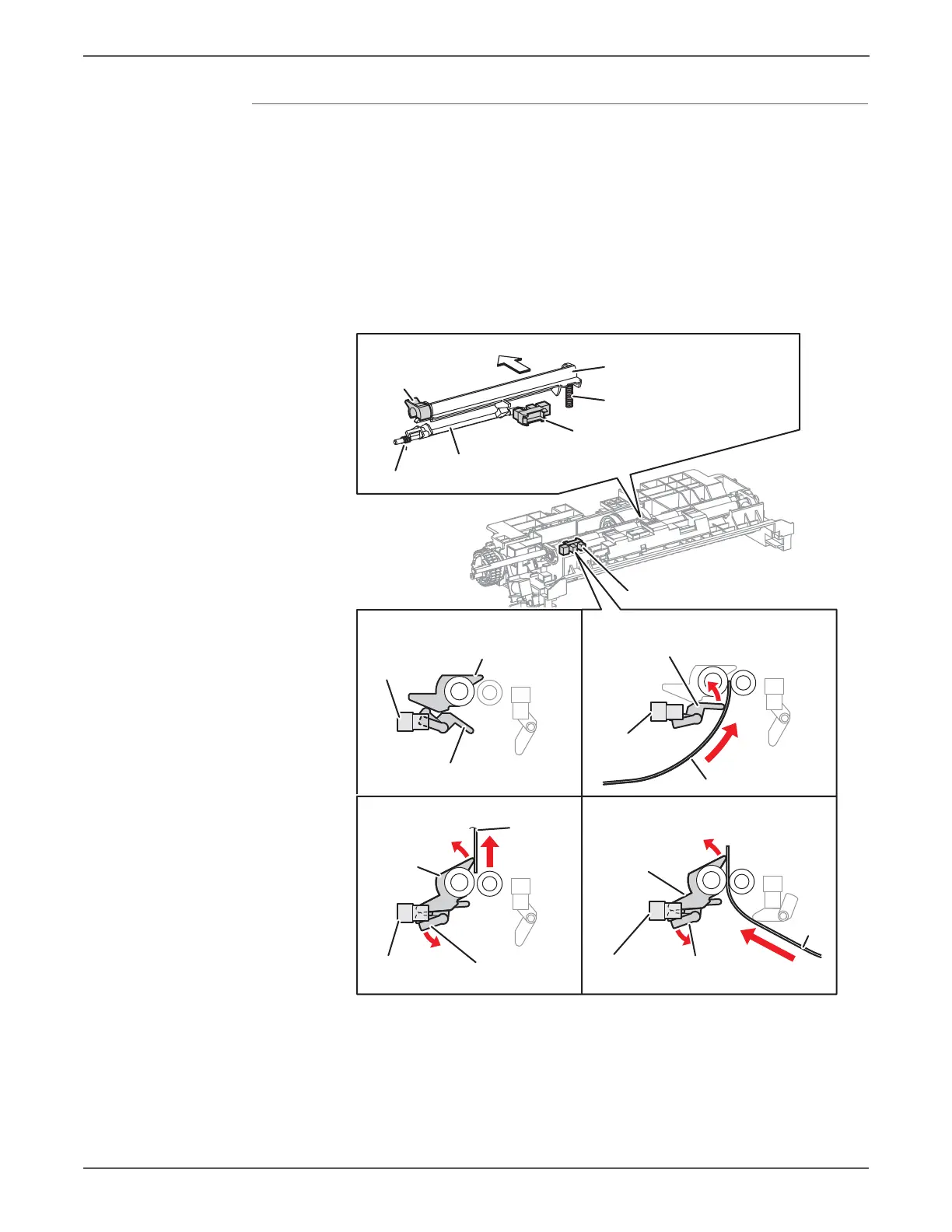

Media Detection
Since the paper path from Manual Feed slot to the Registration Sensor is different
than from the Tray to the Registration Sensor, the Registration Sensor is provided
with the Registration Input Actuator and the Registration Roller Actuator.
• The Registration Roller Actuator detects the sheet from the Manual Feed slot
and detects the trailing edge of the paper from the Tray.
• The Registration Input Actuator detects the lead edge of the paper from the
Tray.
The movement of the Registration Input Actuator does not affect the Registration
Roller Actuator.
s6500-047
Front
Registration Output Spring
Registration Actuator Spring
Registration Output Actuator
Registration Input Actuator
Registration Input Actuator
Registration
Input Actuator
Registration
Input Actuator
Registration Input Actuator
Registration
Roller Actuator
Registration
Roller Actuator
Normal Position
Media Detection: Trailing Edge
From Tray
From Manual Slot
Paper
Paper
Paper
Registration Sensor
Registration Sensor
Registration
Sensor
Registration
Sensor
Registration
Sensor
Rear View
Registration
Sensor
Registration
Roller
Actuator
Registration
Roller
Actuator
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
