Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 3-39
Error Messages and Codes
5 Check the resistances of Temp. Sensor in
the Fuser Assy.
Remove the Fuser Assy.
Check for 370
±
10 kΩ across the
following pins of
J171 when the
fuser is cold.
■ pin 4 to pin 5
■ pin 6 to pin 7
■ pin 6 to pin 8
Are the
resistances
correct?.
Replace the
LVPS. (SFP,
page 8-124;
MFP,
page 8-145)
Then go to
step 6.
Replace the
Fuser Assy.
(page 8-10)
After
replacing the
Fuser, be sure
to reset the
Fuser counter.
6 Does the error still occur when the power
is turned Off and On?
Replace the
MCU Board
(SFP,
page 8-138;
MFP,
page 8-160)
Complete.
Troubleshooting Procedure (continued)
Step Actions and Questions Yes No

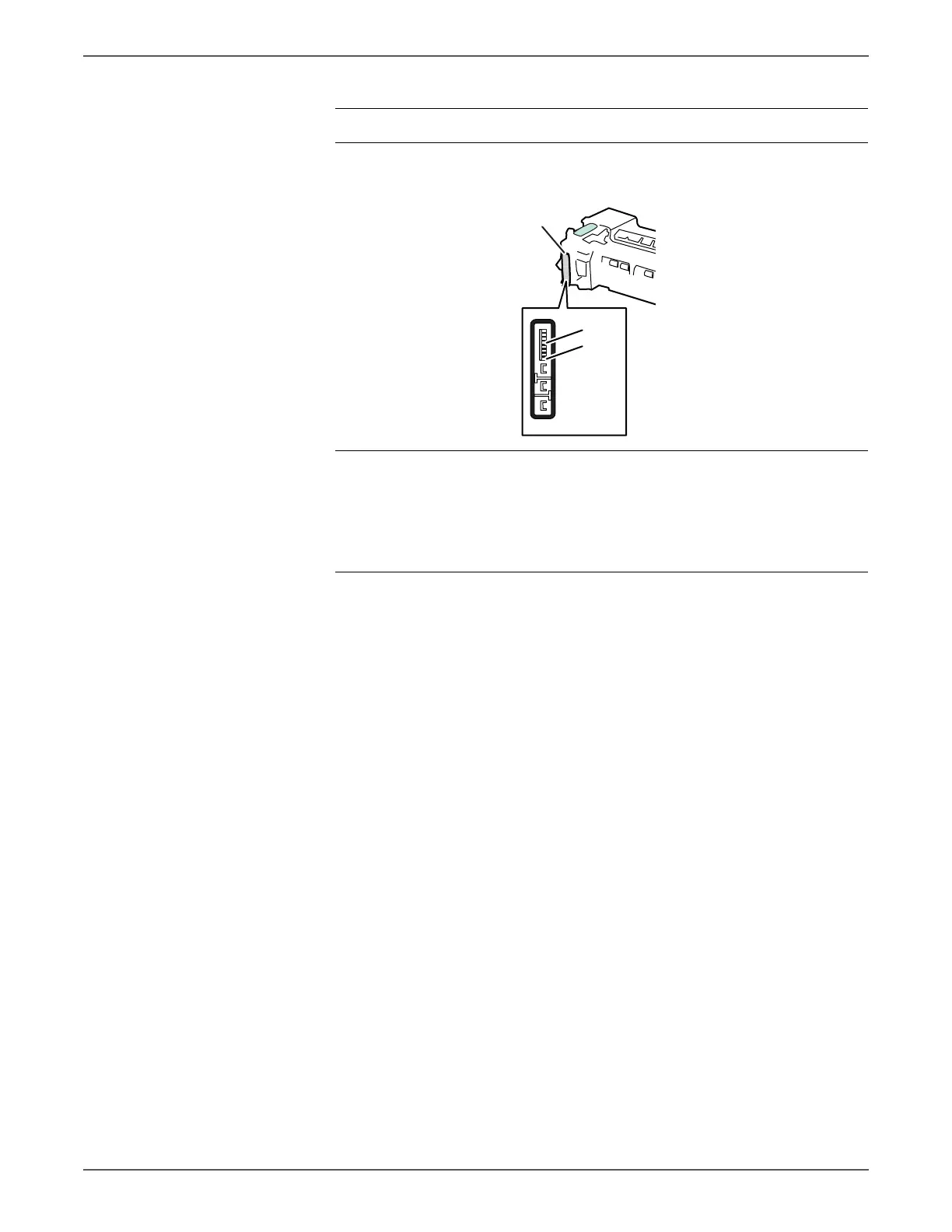

J171
s6500-
Pin 4
Pin 8

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
