4-36 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting

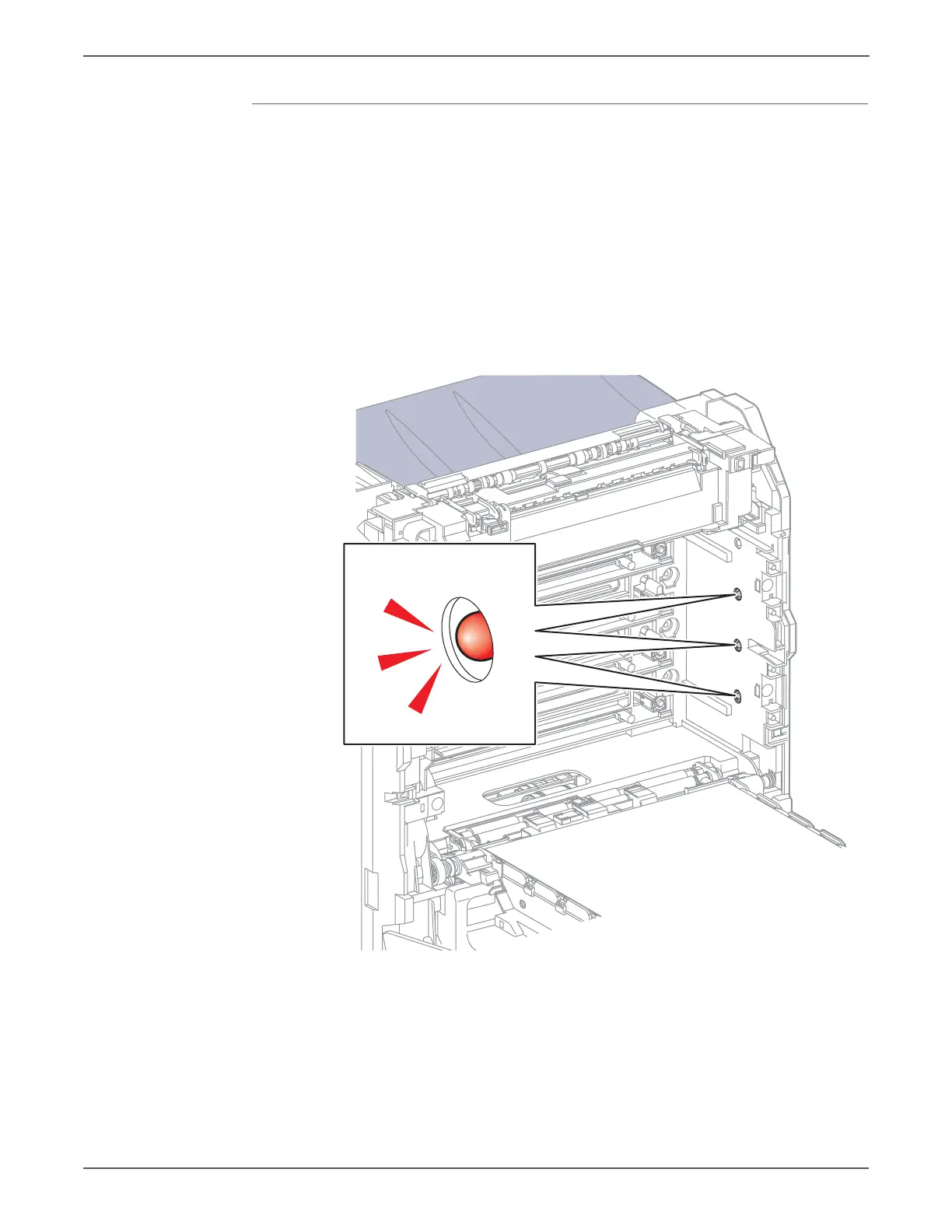

Drum Erase Lamp (C, M, Y)
Note
Close the Interlock Switch to provide power to the device under test.
1. Enter Service Diagnostics (page 4-8).
2. Remove Tray 1.
3. Open the Front Cover.
4. Lower the Transfer Belt.
5. Remove the Imaging Unit (page 8-7).
6. Run the Drum Erase Lamp YMC test: Engine Diag > Motor Test > Drum Erase
Lamp YMC.
7. Verify that the lamps are operating.
Note
Press Cancel to stop the test.
s6500-112
