Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-27
Service Parts Disassembly

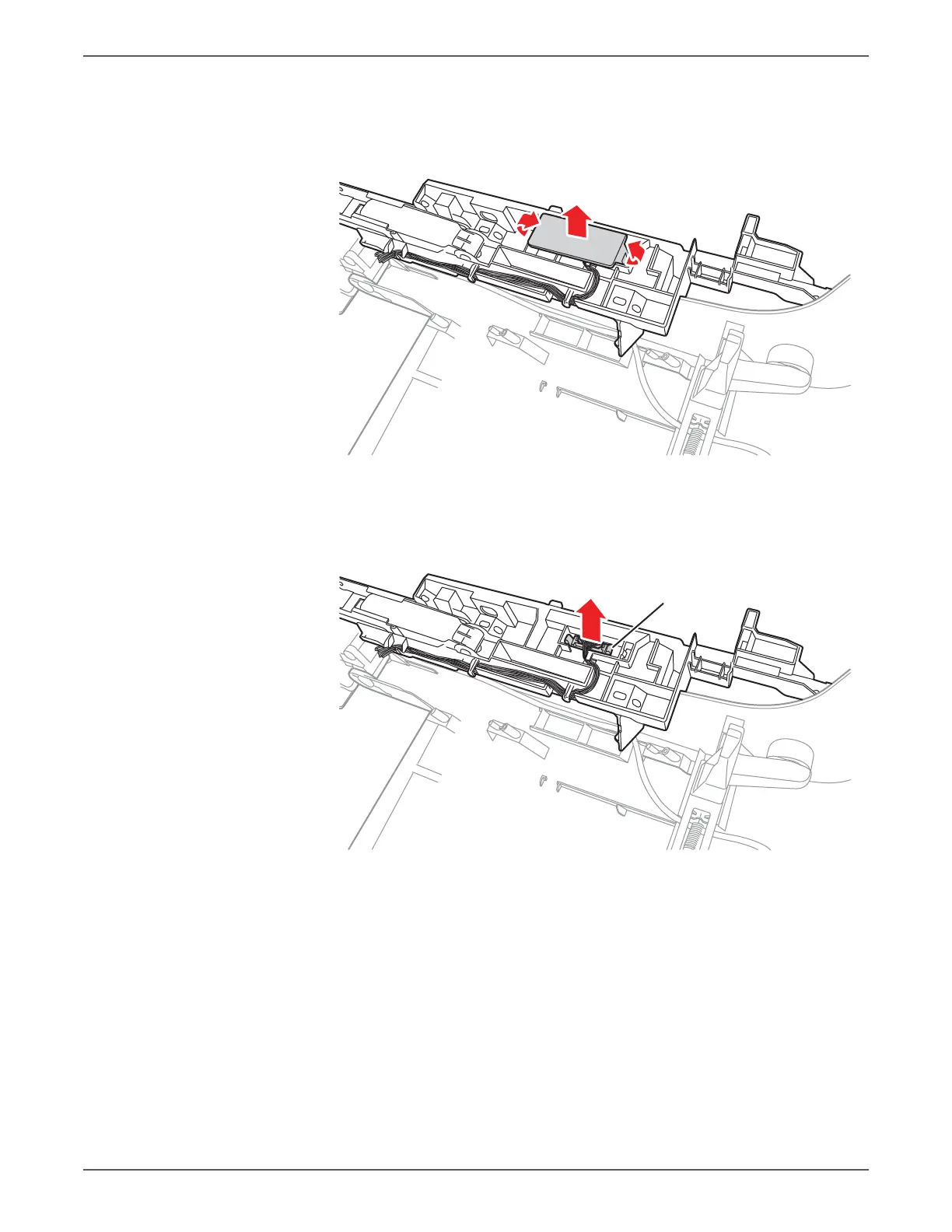

7. Turn the holder over and release 2 hooks that secure the drawer cover to the
holder.
8. Disconnect the Duplex Harness (P/J272) from the connector and remove the
harness from the holder guides.
s6500-202
s6500-203
P/J272
