Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-29
Service Parts Disassembly

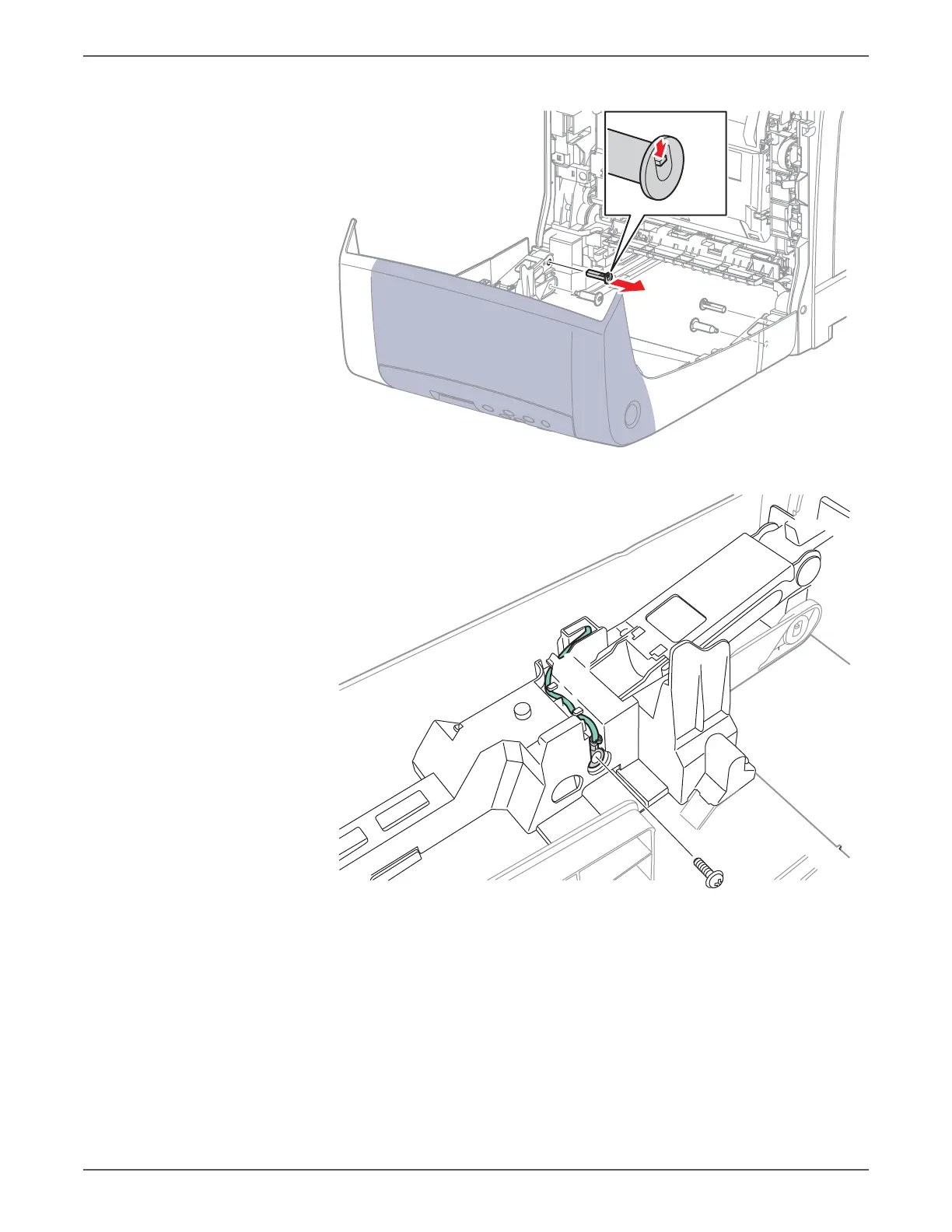

5. Remove the Link Pivot Shaft.
6. Remove the screw that secures the ground harness to the holder.
s6500-509
