Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-57
Service Parts Disassembly

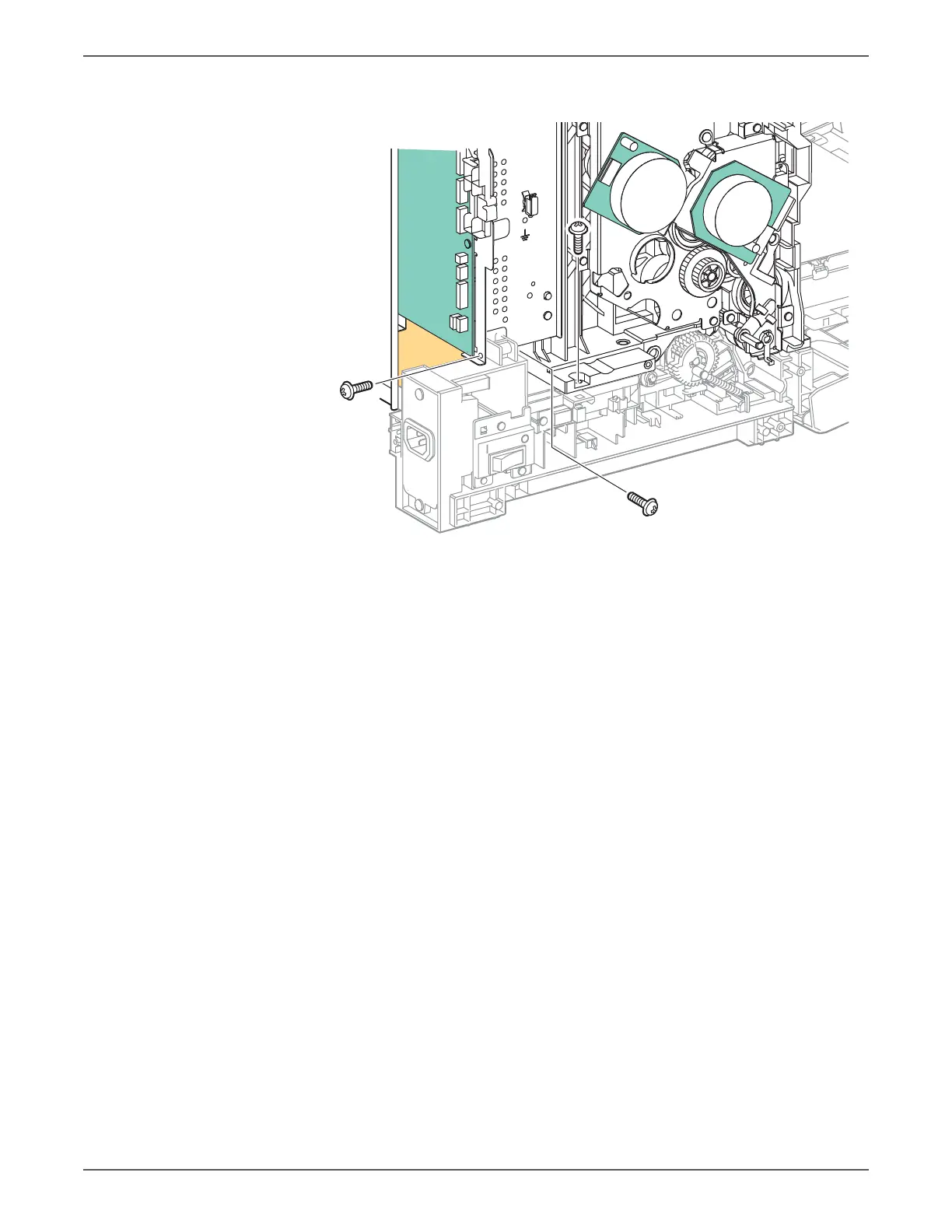

26. Remove three screws (silver, tap, 8mm) that secure the left side of the upper
frame.
Note
Do not damage the springs located on the bottom of the upper frame.
s6500-237
