Xerox WorkCentre 6505 Service Manual

8-62 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

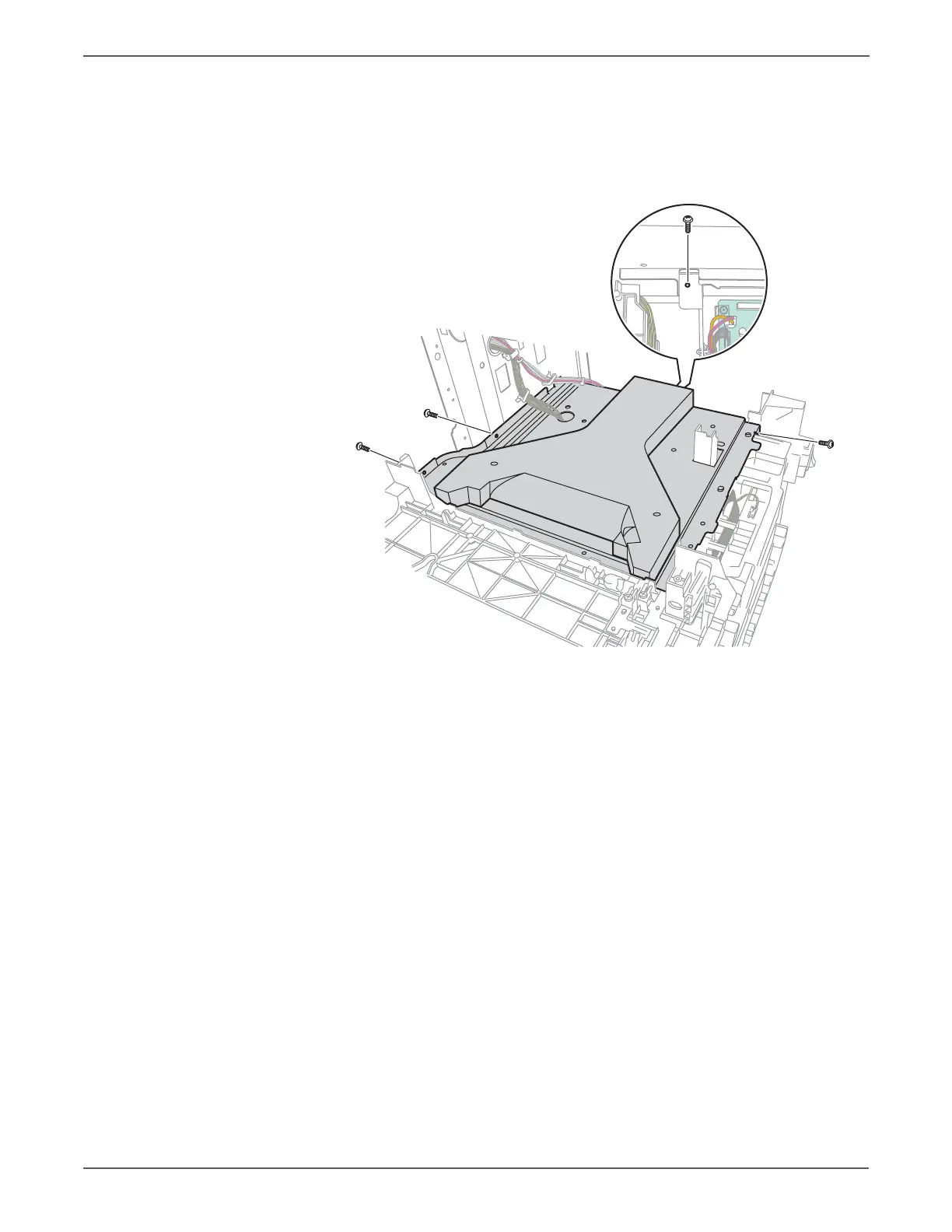

11. Remove the screw (silver, tap, 8mm) that secures the right edge of the Top
Plate Assembly at the back.
12. Remove two screws (silver, M4, 6mm) that secure the left edge of the Top
Plate Assembly at the front.
13. Remove the screw (silver, M4, 6mm) that secures the Top Plate Assembly near
the MCU Board and remove the Top Plate Assembly.
s6500-489
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
