Service Parts Disassembly

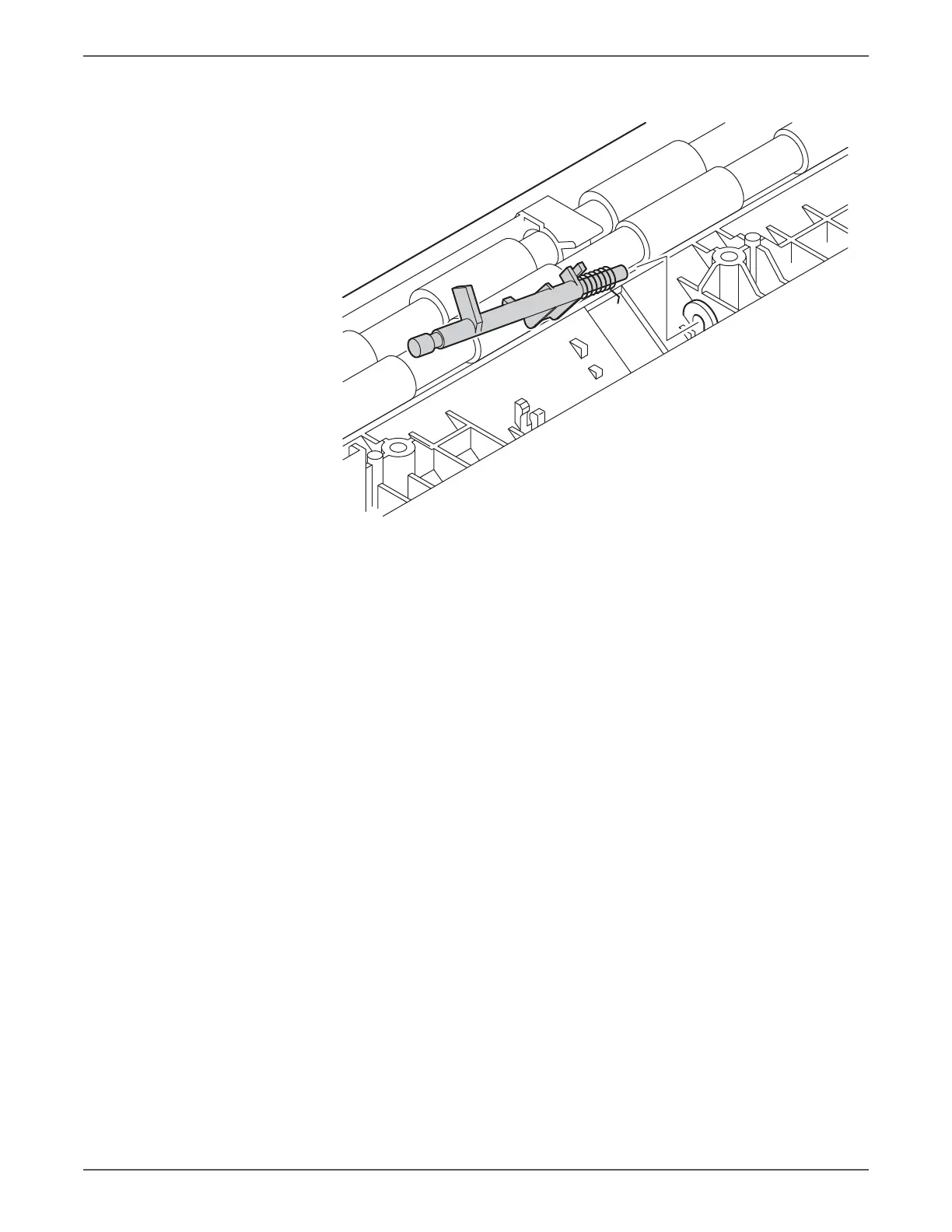

7. Remove the actuator and spring by removing the right end of the shaft from
the hole in the chute.
Replacement Note
Note the orientation of the spring on the actuator.
s6500-249
