Xerox WorkCentre 6505

8-90 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

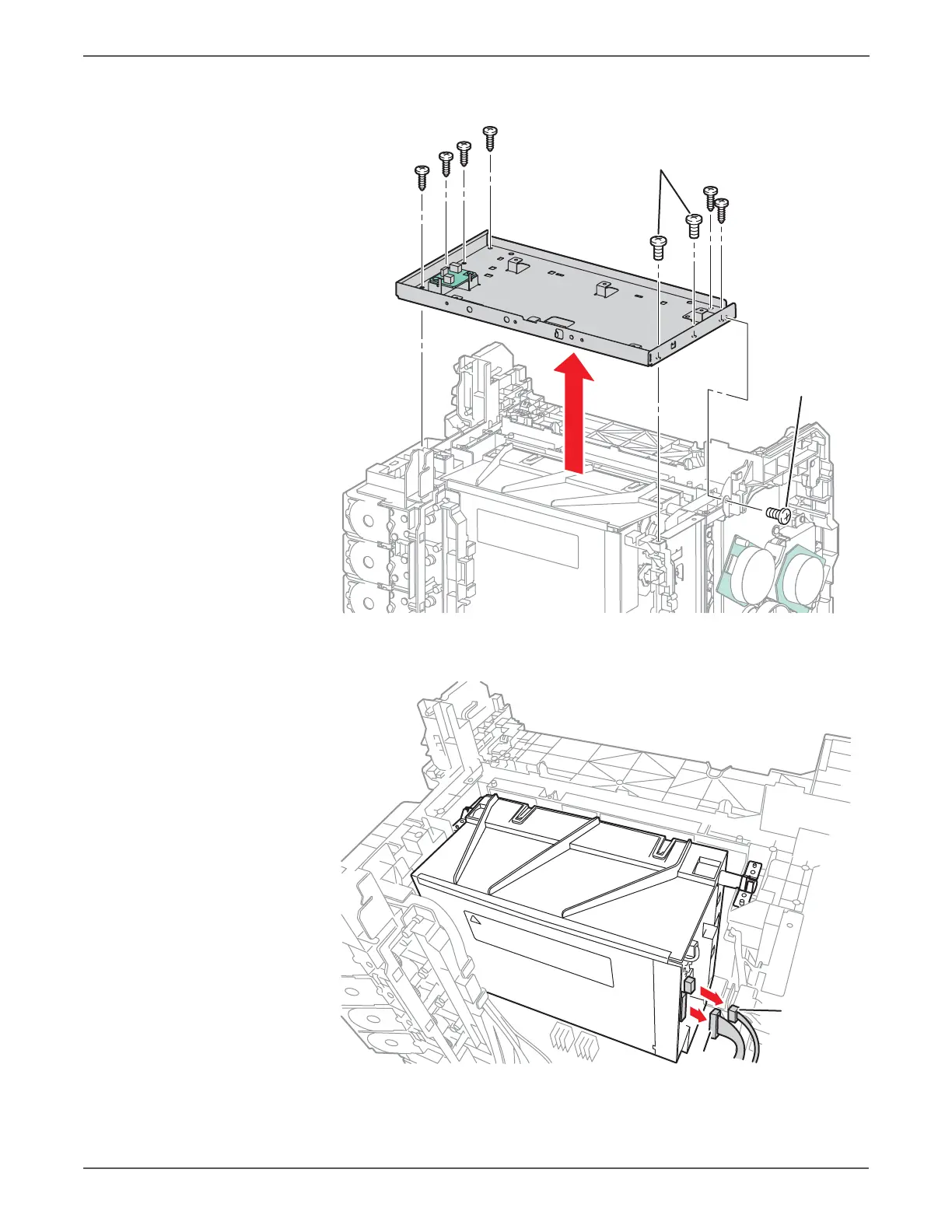

18. Remove three screws (silver, M4, 6mm) and 6 screws (silver, tap, 8mm) that
secure the LVPS Frame to the chassis.
19. Disconnect the 2 Laser Unit harnesses from the Laser Unit (P/J411 and P/
J412).
s6500-270
Silver, M4, 6mm
Silver, M4, 6mm
s6500-271
P/J411
P/J412
