Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-111
Service Parts Disassembly

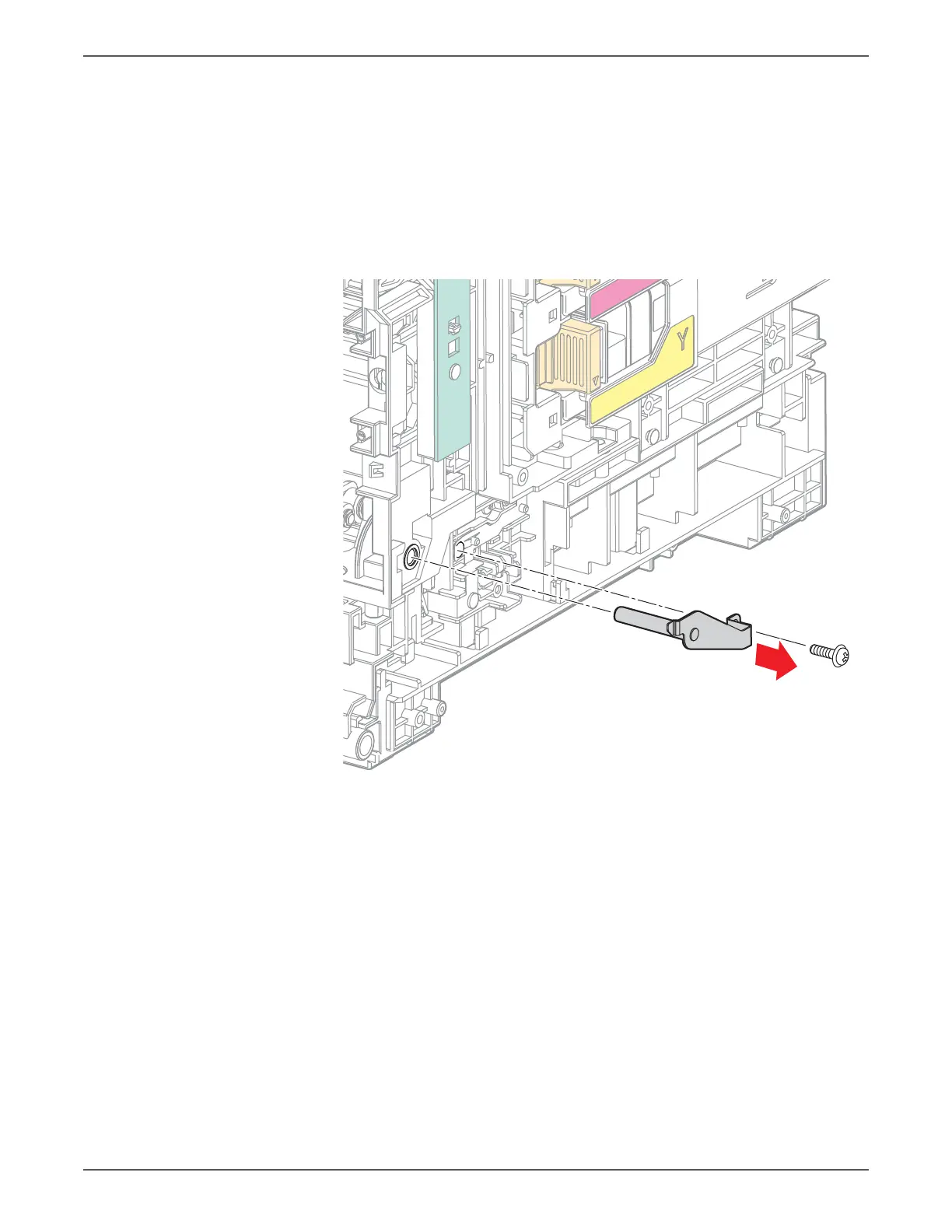

8. Remove the screw (silver, tap, 8mm) that attaches the Right Side Pivot Shaft
to the printer.
Note
When performing the next step, keep the Transfer Belt slightly lifted to
ease Pivot Shaft removal. If you are performing this procedure as part of
the Transfer Belt removal, the only step remaining after removing the
Right Pivot Shaft is to lift the Transfer Belt out of the printer.
9. Pull the Pivot Shaft out of the printer.
Replacement Note
Use care when reinserting the pivot shaft to avoid damaging the grounding
contact in the Transfer Belt pivot.
s6500-293

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
