Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-159

Service Parts Disassembly

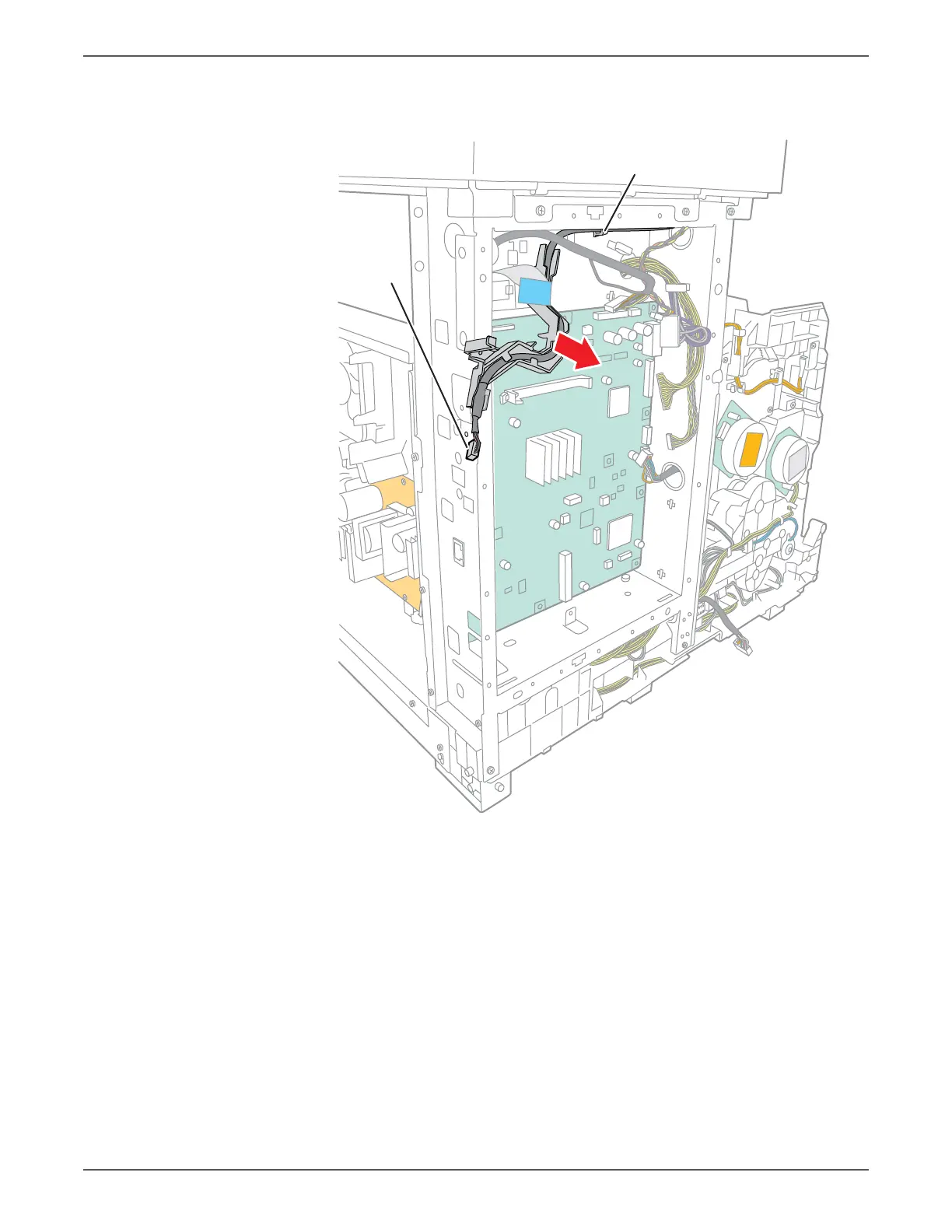

8. Unplug the Front USB Harness (PL10.1.13) at P/J1301 on the IP Board; then

release the Front USB Harness from the USB Harness Guide (MFP PL8.4.5) and

from the clamp.

9. Pull the Front USB Harness out through the hole in the frame to remove the

harness from the printer.

P/J1301

Wire Clamp

s6500-492
