9-28 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Parts Lists

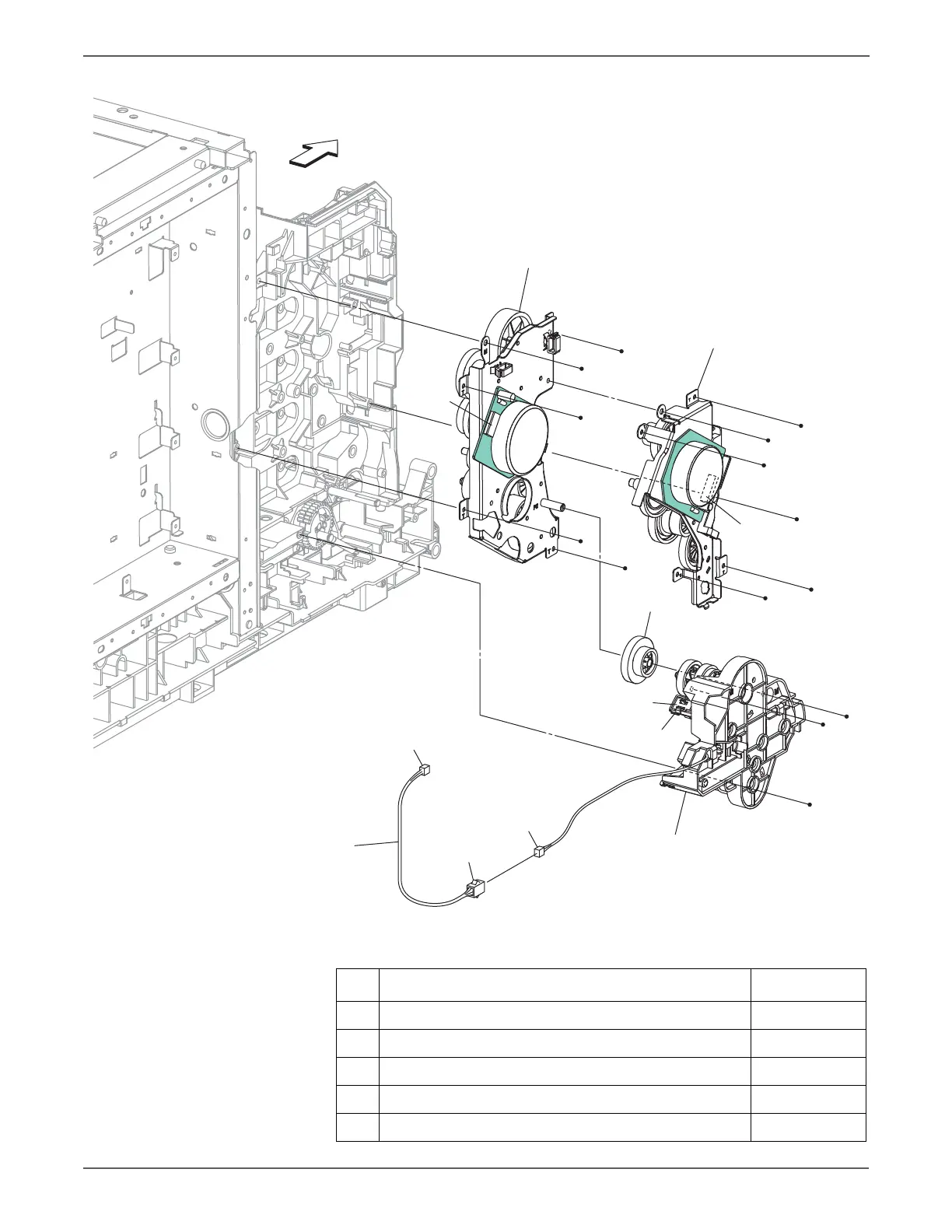

MFP Parts List 7.1 Drive
Item Name/Description Part Number
1 Drive Assy Sub (Sub Drive Assembly) 007K17400
2 Drive Assy Main (Main Drive Assembly) 007K17390
3 Gear P2 807E15100
4 Drive Assy PH (Feed Drive Assembly) 007K94706
5 Harness Assy KSOL MG AIO (J24-P241) (MFP only)
s6500-402
ST1
SM3
ST1
ST1
ST1
SM3
ST1
ST1
ST1
ST1
ST1
SM3
SM2
ST1
Front
1
3
(P221)
2
4
5
(J241)
(P261)
(P211)
(P241)
(J24)
Color Mode
Switching Sensor
MFP
