Xerox WorkCentre 6505 Service Manual

2-42 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation

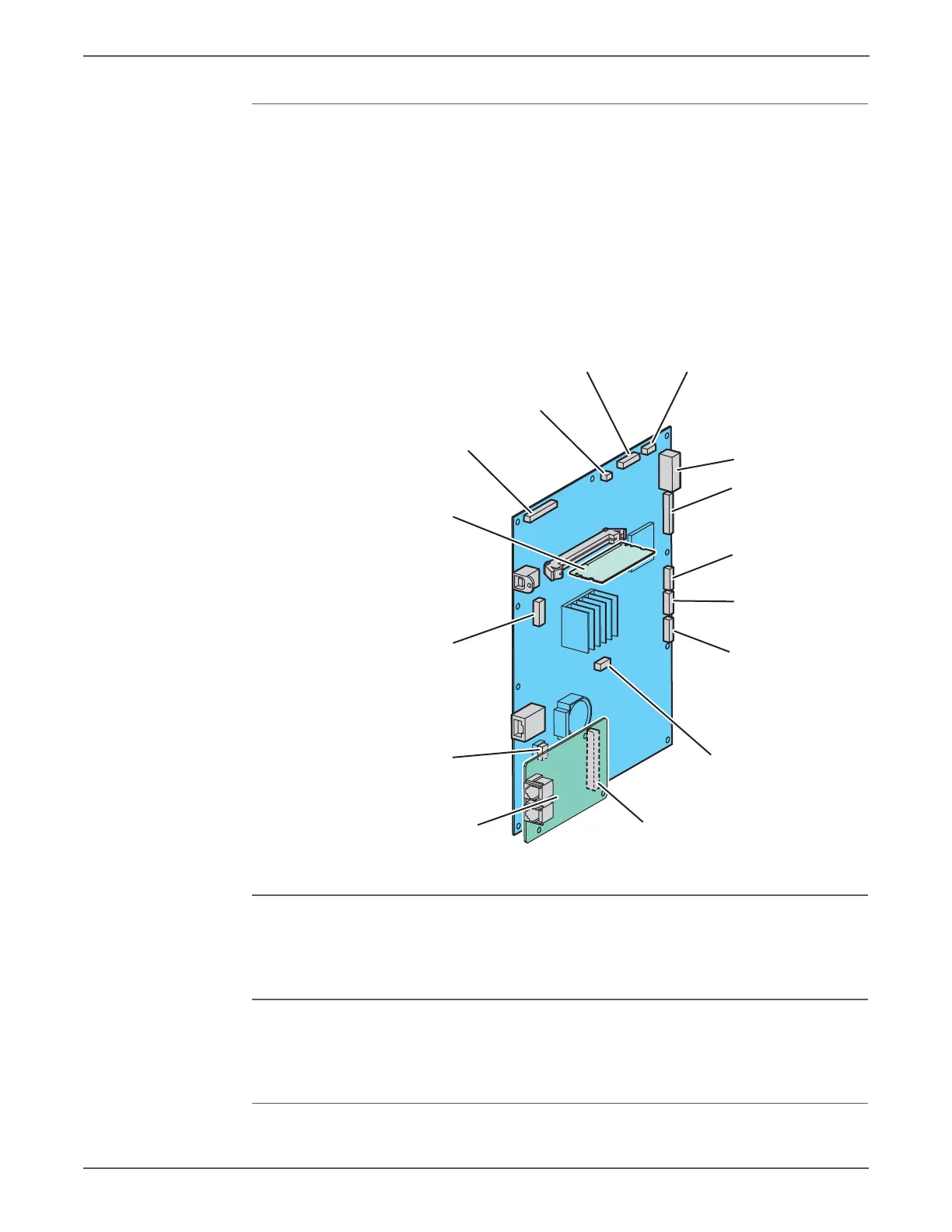

MFP Image Processor Board
Like the SFP Image Processor Board, the MFP Image Processor Board is connected
to the MCU Board, and controls the printer, including diagnostic, interface, and
image processing. The primary function of the IP Board is the same, but there are
two additional host data sources: the Scanner, and FAX. The received host data is
buffered, stored, and sent to the print engine in a rasterized format.
When installing a new IP Board in the printer, you must transfer the following parts
from the old board to the new board:
•Memory DIMM
•NVRAM
•FAX Board
Humidity /Temperature Sensor
The Humidity/Temperature Sensor, located on the printer’s left side in the frame
below the drive motors, reads the humidity and temperature within the printer.
Interlock Switch
The Interlock Switch interrupts the supply of +24 VDC power to the HVPS or Motor
upon the opening of the Front Cover.
Toner Door Switch
This switch signals the controller when the Toner Door is open.
P/J1002
P/J802
P/J2001
P/J2002
P/J403
P/J2501
P/J2103
P/J801
P/J1003
P/J2401
P/J1001
Memory DIMM
P/J1301
NVRAM
s6500-468
FAX Board
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
