3.4.1.4 Cutter Replacement
1. Remove the Front Cover. (p142)
2. Open the Cutter Cover.
3. Loosen the screw that secures the cutter, and remove the cutter.
A) Silver, Phillips, Bind P-tite M4x10: one piece

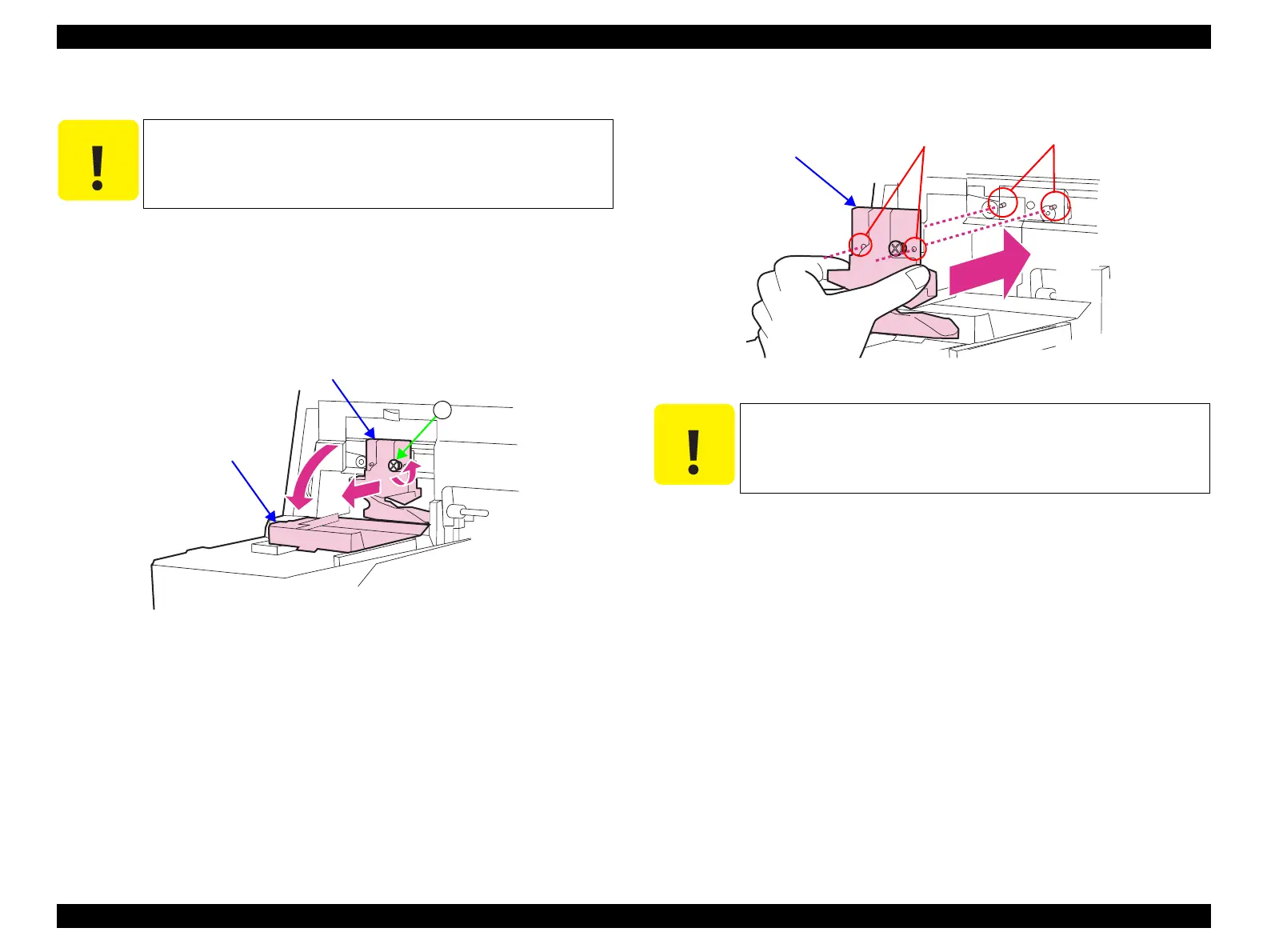

Figure 3-17. Removing the Cutter
4. Set the positioning holes of the new cutter to the bosses of the main body.
Figure 3-18. Installing a new cutter
5. Secure the cutter with the screw. See Figure 3-17.
6. Close the Cutter Cover. See Figure 3-17.
7. Set the Front Cover, and secure it with the four screws. See Figure 3-17.
C A U T I O N
When removing the cutter, be careful not to drop it.
Cutter Cover
Cutter
A
C A U T I O N
When securing the cutter in the next step, be sure to secure it
firmly. Otherwise, the cutting position may be misaligned or
skewed.
Cutter
Bosses
Positioning holes
