Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 240
Confidential
12. Remove the eight screws that secure the Home (Right) Side Cartridge Holder.
A) Silver, Phillips, Round Washer Head S-tite M3x6: eight pieces
13. Slide the Home (Right) Side Cartridge Holder to the right to remove it from the
main body.

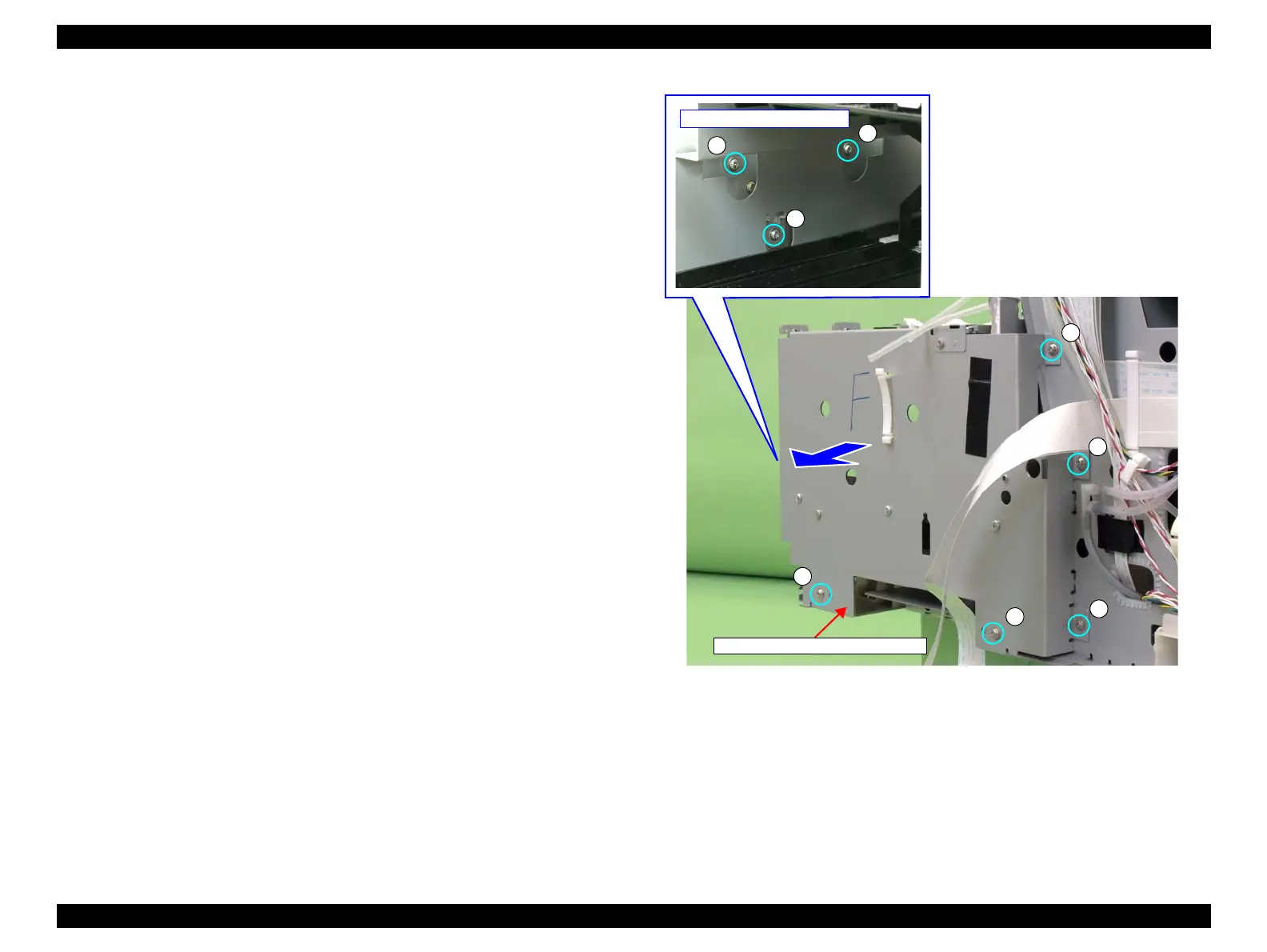

Figure 3-175. Removing the Home (Right) Side Cartridge Holder
A
Home (Right) Side Cartridge Holder
A
A
A
A
A
A
A
- In the Cartridge Holder -
To Next Page
