Epson Stylus Pro 4900
/Epson Stylus Pro 4910
Revision A
DISASSEMBLY & ASSEMBLY
Disassembly and Assembly Procedure
128
Confidential
3.4.1.5 Maintenance box 1
1.
Open the Right Cartridge Co
ver.
2.
Pull out the Maintenance box 1.

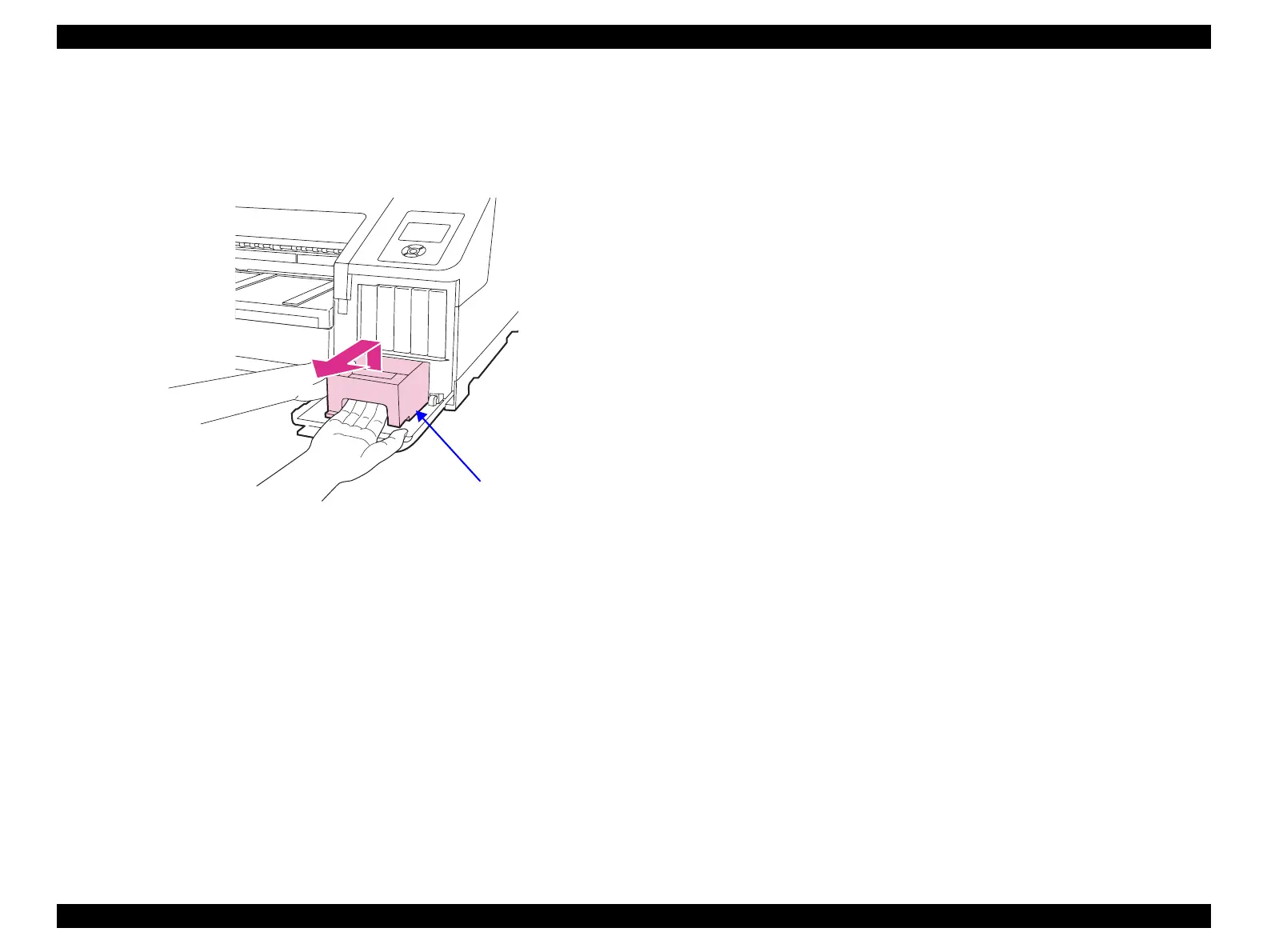

Figure 3-19. Removing the Maintenance box 1
Maintenance box 1
126
128
