Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 148
Confidential
3.4.2.14 Media Eject Cover
1. Remove the Front Cover. (p142)
2. Remove the Right Upper Cover. (p138)
3. Remove the Control Panel Cover. (p136)
4. Remove the Right Cover. (p139)
5. Remove the Left Cover. (p137)
6. Remove the upper front cover.
(Step 6 to Step 10 in “3.4.2.2 Printer Cover Sensor” (P. 134))
7. Remove the three screws that secure the Media Eject Cover.
A) Silver, Phillips, Round Washer Head S-tite M3x8: three pieces
8. Remove the Media Eject Cover.

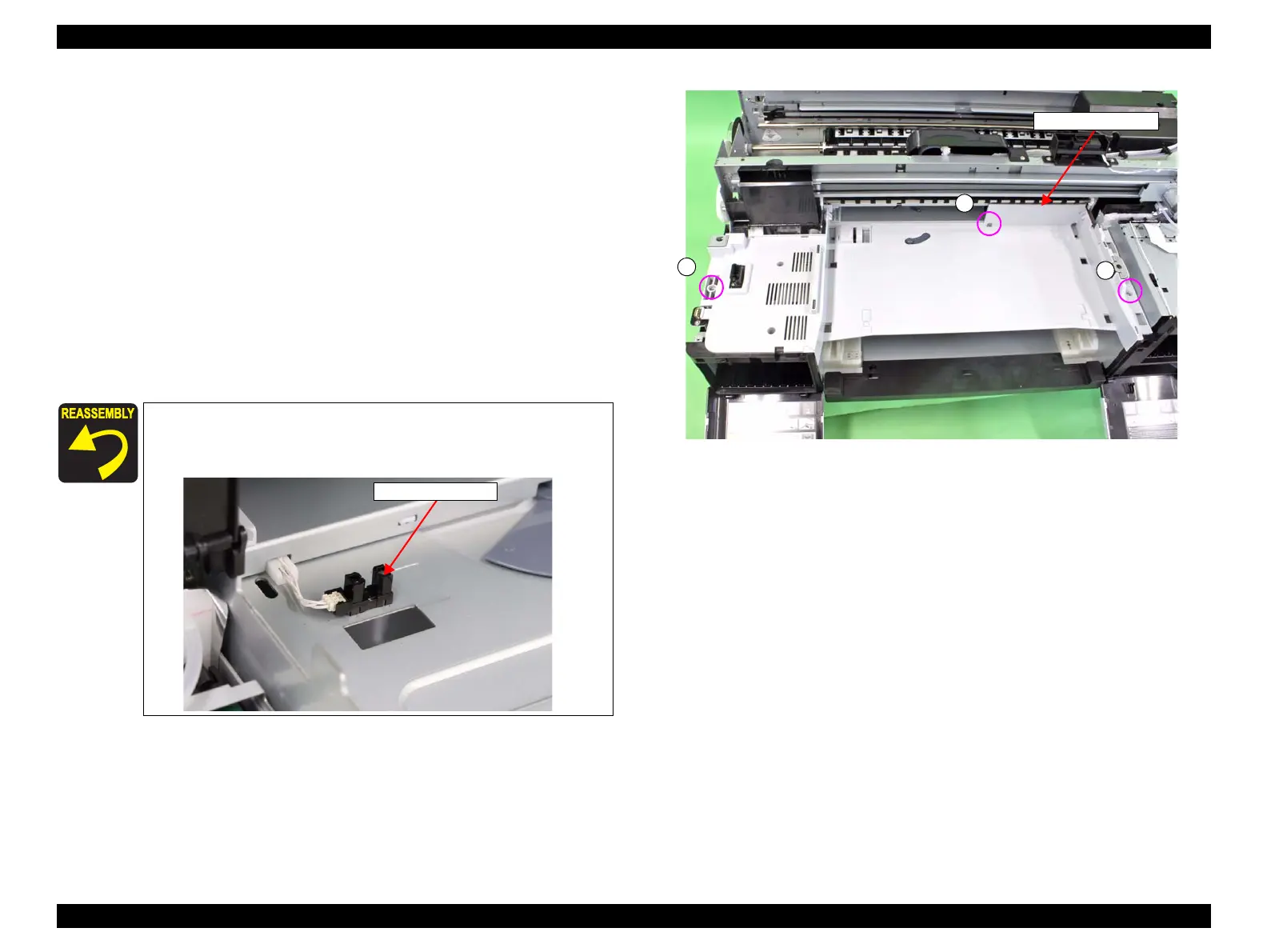

Figure 3-50. Removing the Media Eject Cover
When installing the Media Eject Cover, be sure to confirm that the
paper guide sensor is attached. The paper guide sensor may come
off when removing the Media Eject Sensor.
Paper guide sensor
A
A
A
Media Eject Cover
