Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 246
Confidential
15. Remove the four screws that secure the Maintenance box 1 Holder.
A) Silver, Phillips, Bind machine screw M3x10:
four
pieces
16. Remove the Maintenance box 1 Holder while pulling out the FFC and the Waste
Ink Tube.

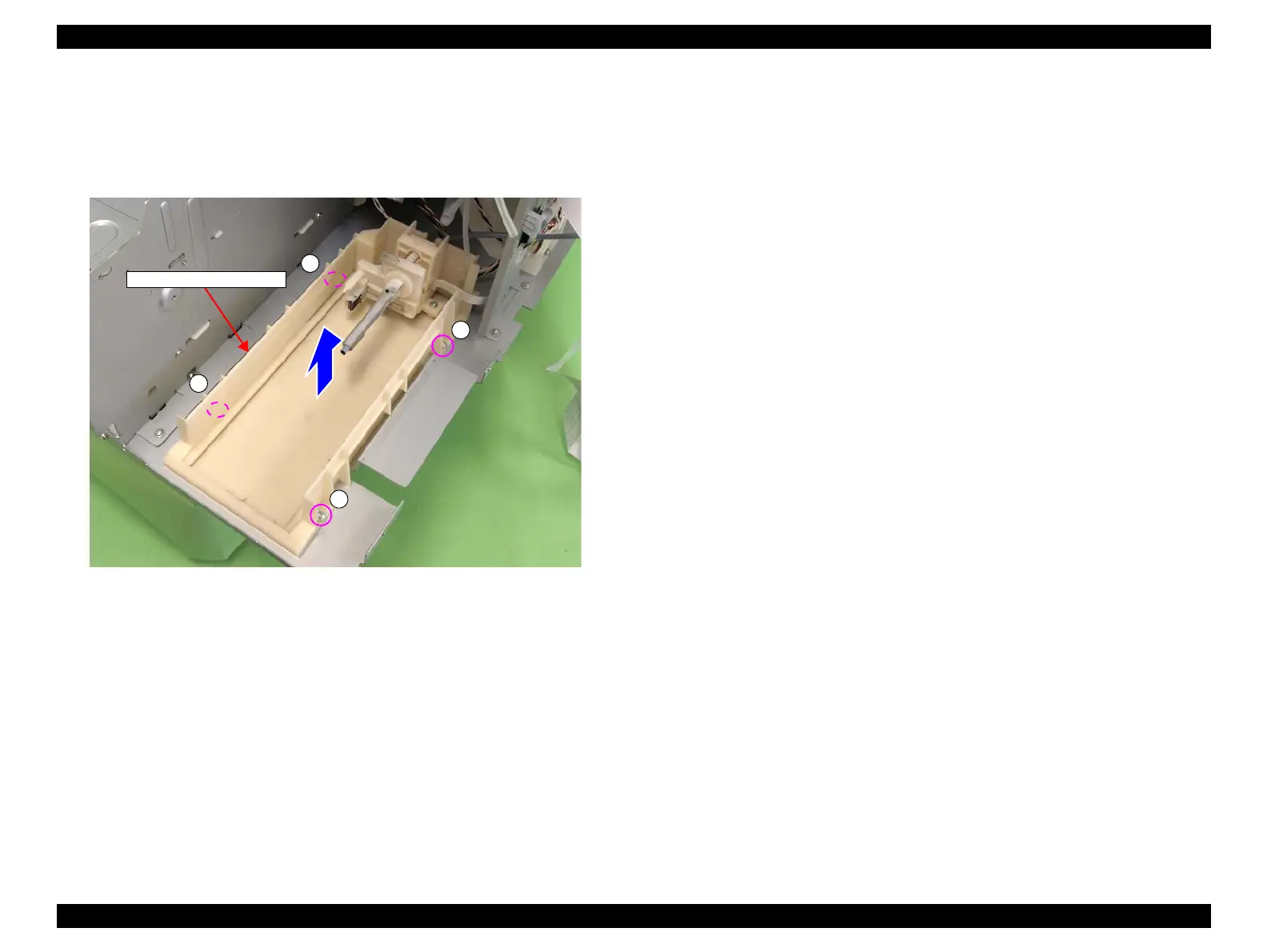

Figure 3-181. Removing the Maintenance box 1 Holder
Maintenance box 1 Holder
A
A
A
A
To Next Page
