Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 137
Confidential
3.4.2.4 Left Cover
1. Remove the Front Cover. (p142)
2. Open the Printer Cover.
3. Remove the five screws that secure the Left Cover.
A) Silver, Phillips, Bind S-tite with S.W & P.W. M4x10: five pieces
4. Remove the Left Cover.

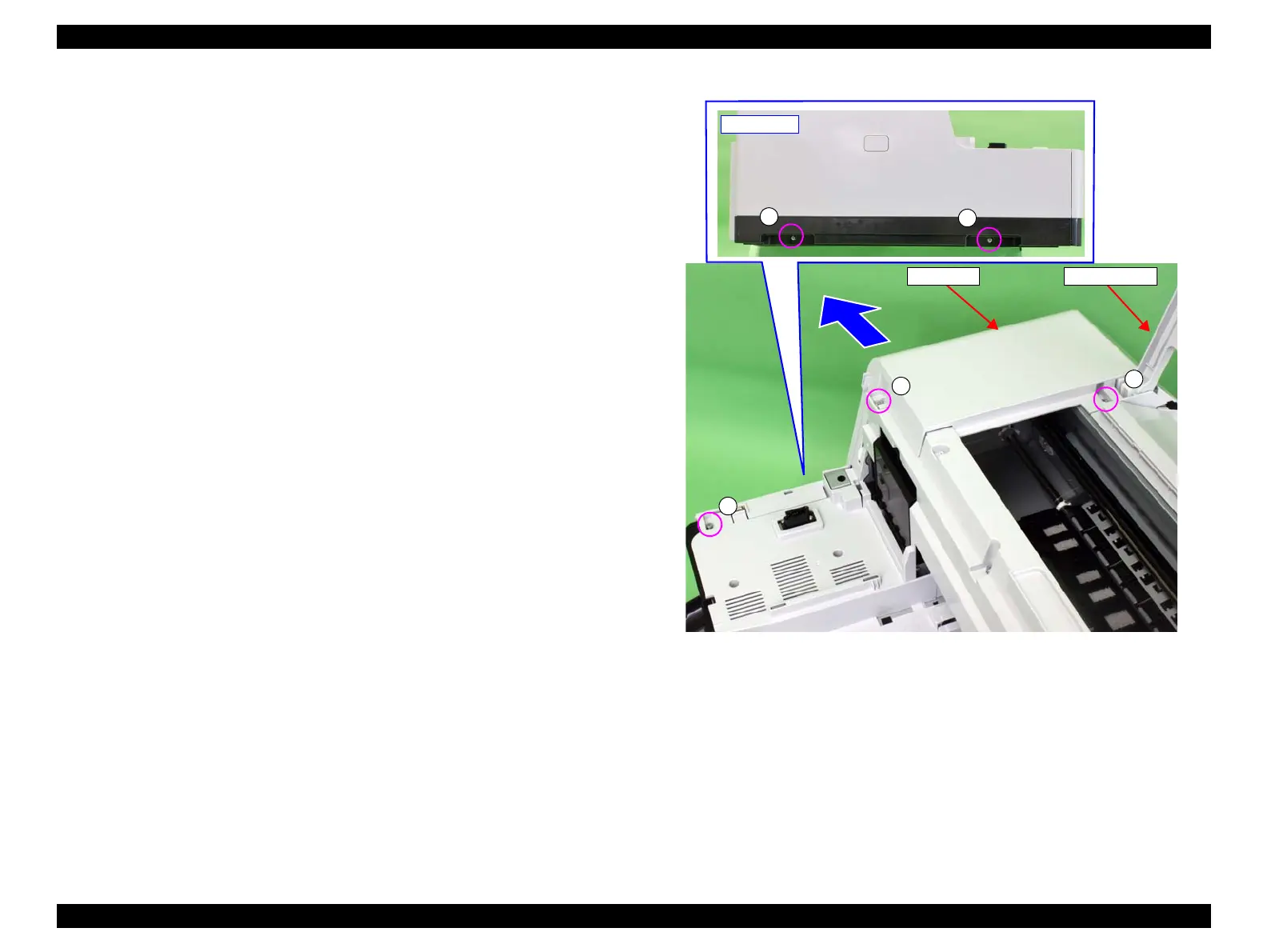

Figure 3-35. Removing the Left Cover
A
A
- Left side -
Printer Cover
A
A
A
Left Cover
