Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 223
Confidential
3.4.8 Cutter Unit
3.4.8.1 Cutter Cover
1. Remove the Front Cover. (p142)
2. Open the Cutter Cover.
3. Pull the Cutter Cover in the direction of the arrow to disengage the joint, and
remove the Cutter Cover.

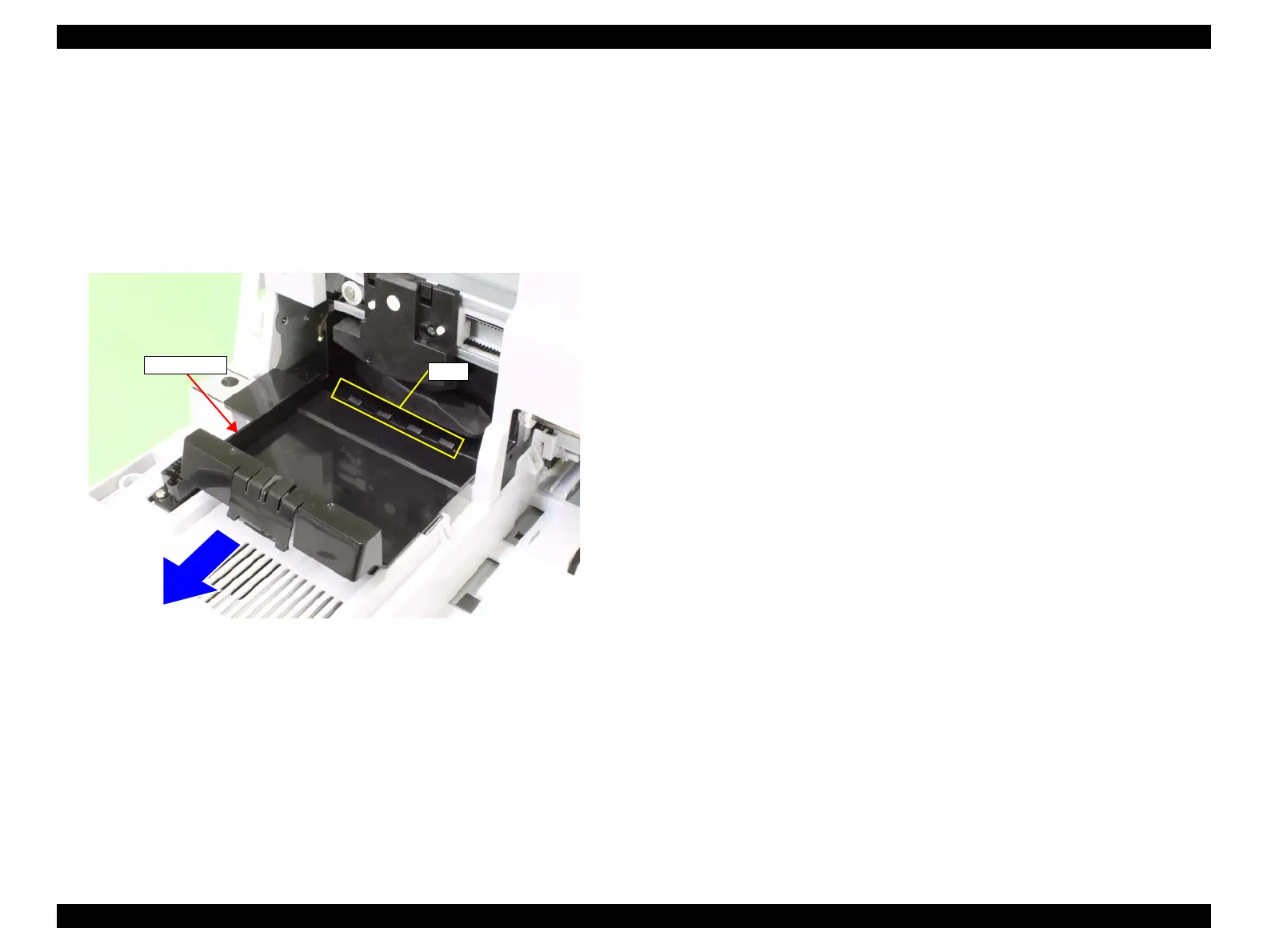

Figure 3-154. Removing the Cutter Cover
Cutter Cover
Joint
To Next Page
