9. Remove the two screws that secure the Paper Pressing Motor.
A) Silver, Phillips, Bind machine screw M3x4: two pieces
10. Remove the Paper Pressing Motor.

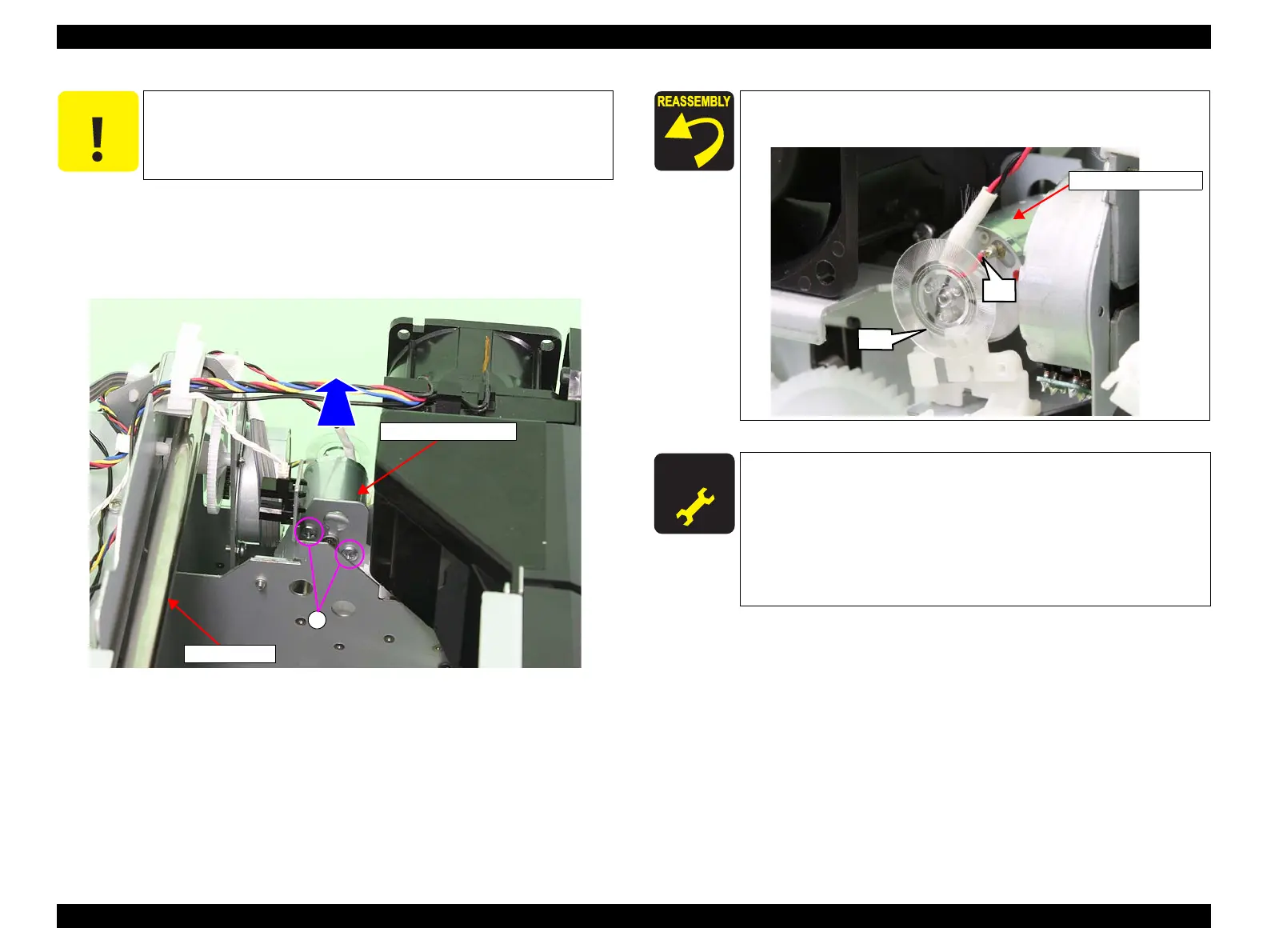

Figure 3-213. Removing the Paper Pressing Motor
C A U T I O N
When removing the screws in the next step, make sure not to touch
the carriage shaft since the grease is applied on the carriage shaft.
A
Paper Pressing Motor
Carriage shaft
When installing the Paper Pressing Motor, be careful of the
installation direction referring to the figure below.
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 4 “Adjustment” (see p277) and perform
specified adjustments after replacing or removing the Paper
Pressing Motor.
<Adjustment items>
1. Counter Reset (Spectroproofer Paper Pressing Motor Counter)
2. Spectroproofer Movement Check
3. Spectroproofer Measurement Precision Check
Paper Pressing Motor
Red
Black
To Next Page
