Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
APPENDIX Connection Diagram 439
Confidential

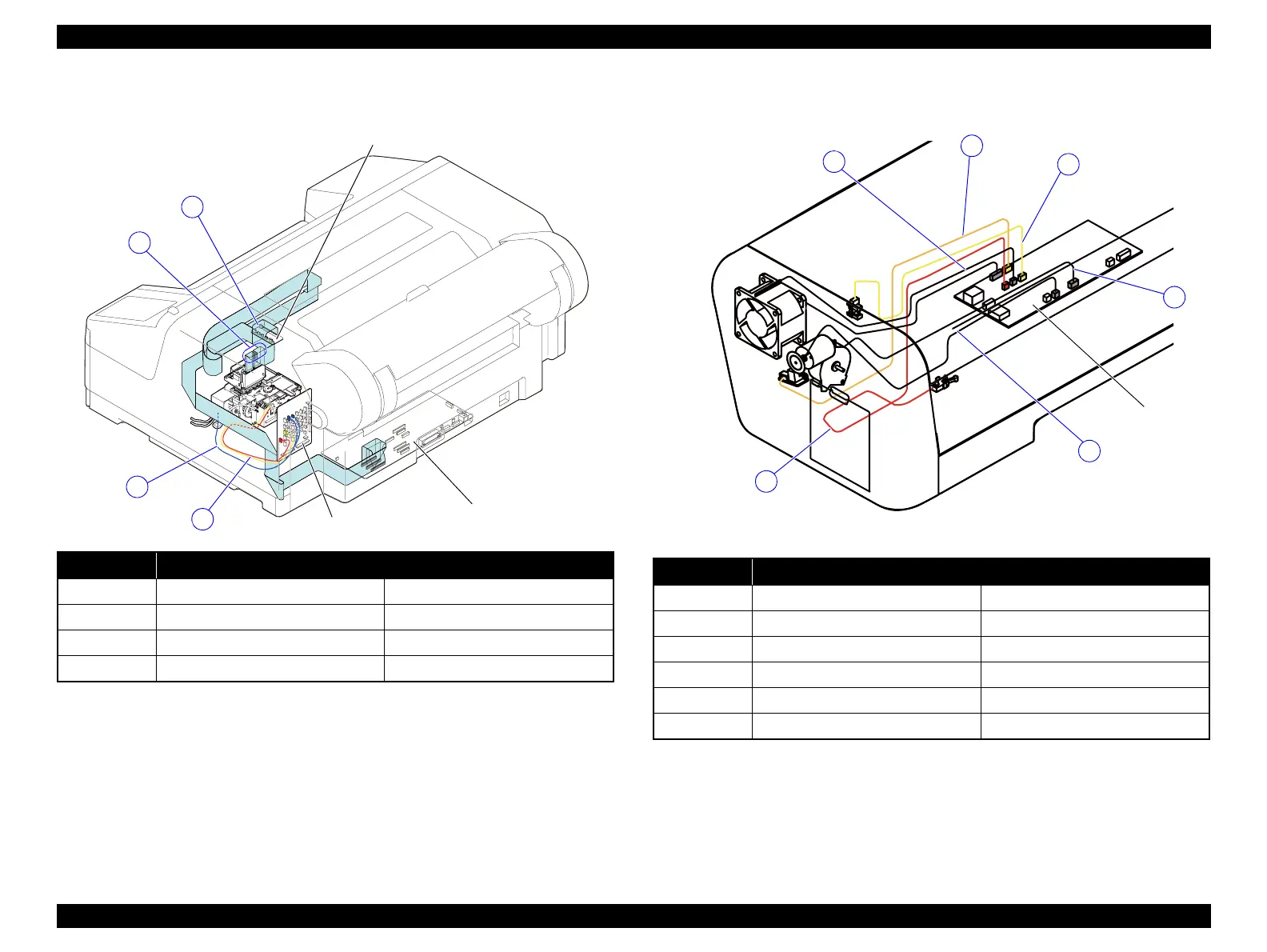

6.2.11 Ink System Mechanism 2 6.2.12 SpectroProofer
Cable No. Connection
1
SUB Board (CN100) Main Board (CN100)
2
Print Head Main Board (CN101/CN102)
3
IS Unit SUB-B Board (CN228/CN229)
4
IS Unit SUB-B Board (CN230/CN231)
1
2
3
4
SUB-B Board
Main Board
SUB Board
Cable No. Connection
1
CR HP Sensor Main-C Board (CN10)
2
Encoder for paper pressing motor Main-C Board (CN22)
3
Thermistor Main-C Board (CN11)
4
Thermistor Main-C Board (CN15)
5
Paper Pressing Motor Main-C Board (CN18)
6
CR Motor Main-C Board (CN19)
2
4
1
3
5
6
Main-C Board
To Next Page
