Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 168
Confidential
3.4.4 Carriage Mechanism
3.4.4.1 CR Motor
1. Remove the Front Cover. (p142)
2. Remove the Right Upper Cover. (p138)
3. Remove the Control Panel Cover. (p136)
4. Remove the Right Cover. (p139)
5. Remove the Mid-Right Cover. (p150)
6. Unlock the CR Unit, and move the CR Unit to the left side. (p124)
7. Disconnect the connector (CN204) of the CR Motor from the SUB-B Board.
8. Release the harness from the saddle.

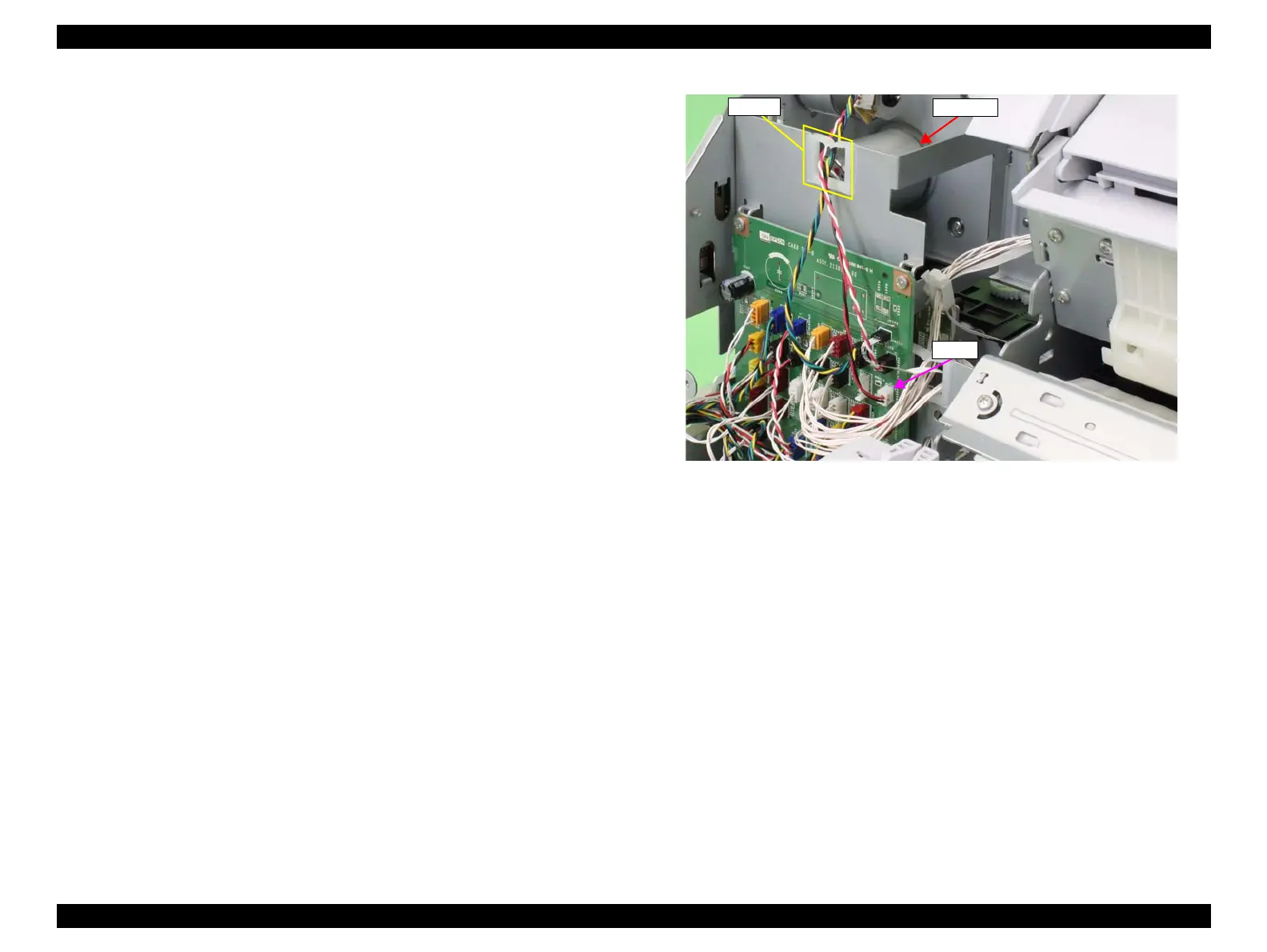

Figure 3-78. Releasing the harness
CR Motor
CN204
Saddle
To Next Page
