Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 186
Confidential
3.4.5.5 Suction Fan
1. Remove the Front Cover. (p142)
2. Remove the Right Upper Cover. (p138)
3. Remove the Control Panel Cover. (p136)
4. Remove the Right Cover. (p139)
5. Remove the Left Cover. (p137)
6. Remove the Media Eject Cover. (p148)
7. Remove the two screws that secure the Suction Fan.
A) Silver, Phillips, Round Washer Head S-tite M3x8: one piece
B) Silver, Phillips, Round Washer Head S-tite M3x6: one piece
8. Disconnect the relay connector, and remove the Suction Fan.

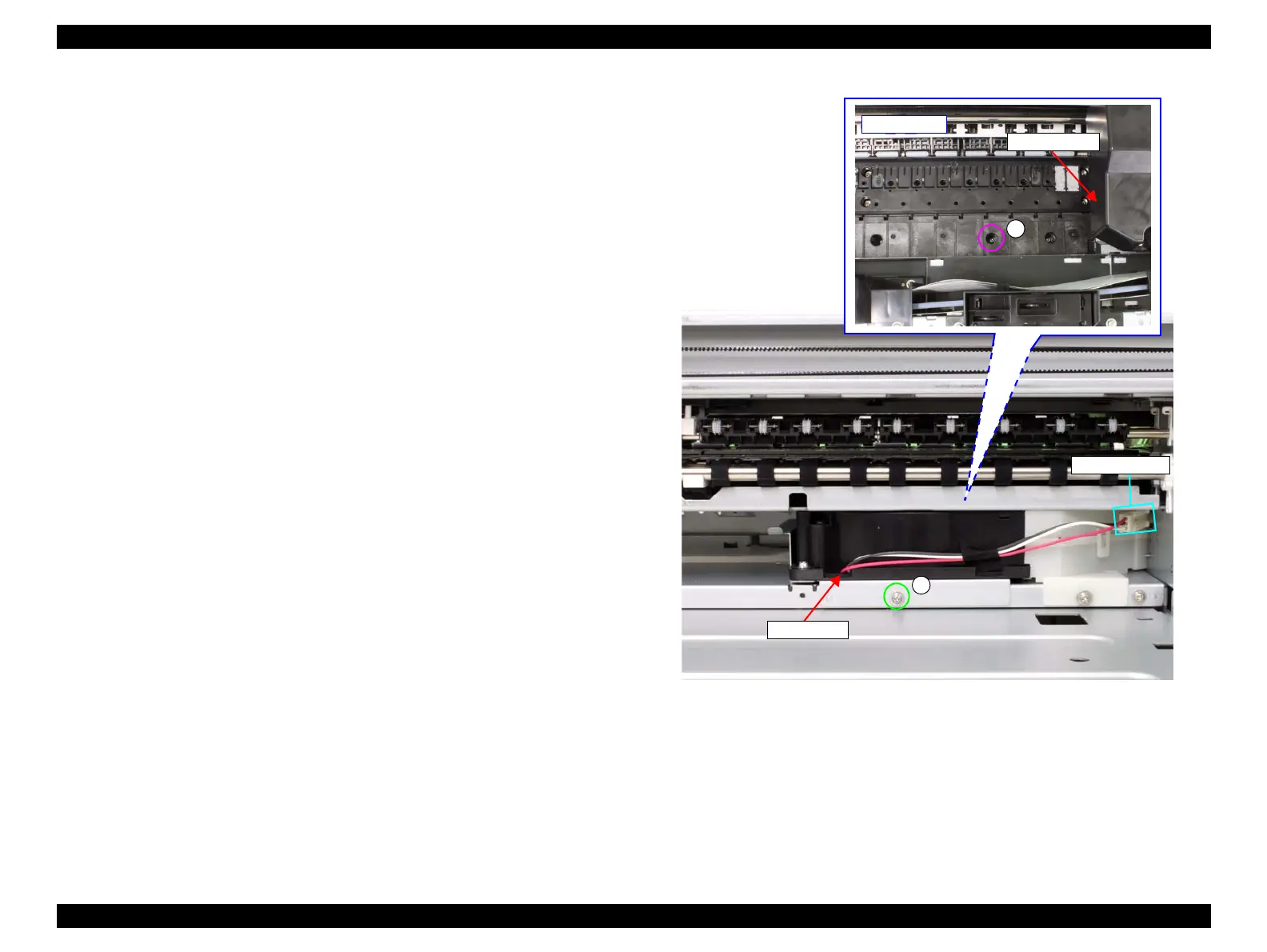

Figure 3-99. Removing the Suction Fan
Suction Fan
Relay connector
B
A
A
- On platen -
Carriage unit
