Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 136
Confidential
3.4.2.3 Control Panel Cover
1. Remove the Front Cover. (p142)
2. Remove the two screws that secure the Control Panel Cover.
A) Silver, Phillips, Round Washer Head S-tite M3x6: two pieces
3. Pull the Control Panel Cover frontward to release the two dowels, and remove the
Control Panel Cover.

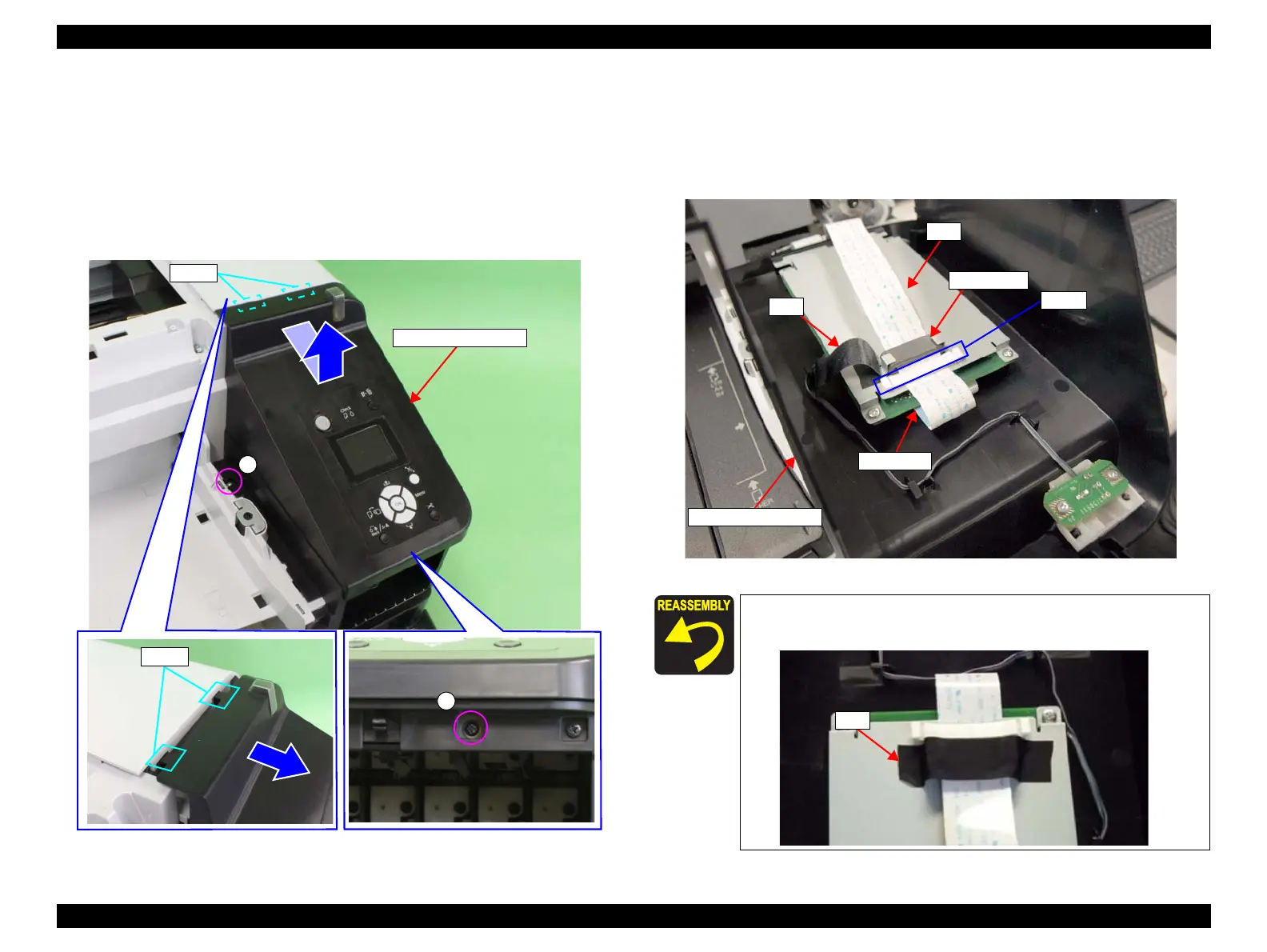

Figure 3-33. Removing the Control Panel Cover
4. Release the FFC from the clamp, and disconnect the FFC from the connector of
the Control Panel Board.
5. Peel off the tape.
6. Pull out the FFC from the ferrite core.
Figure 3-34. Removing the FFC
Control Panel Cover
A
A
Dowels
Dowels
When installing the Control Panel Cover, restore the original
routing (ferrite core and tape) for noise protection purposes.
Connector
Clamp
Control Panel Cover
FFC
Tape
Ferrite core
Tape
To Next Page
