Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 221
Confidential
3.4.7.5 Paper Guide Sensor
1. Remove the Front Cover. (p142)
2. Remove the Control Panel Cover. (p136)
3. Remove the Right Upper Cover. (p138)
4. Remove the Right Cover. (p139)
5. Remove the Left Cover. (p137)
6. Remove the Media Eject Cover. (p148)
7. Disconnect the connector from the Paper Guide Sensor.
8. Disengage the hook that secures the Paper Guide Sensor, and remove the Paper
Guide Sensor.

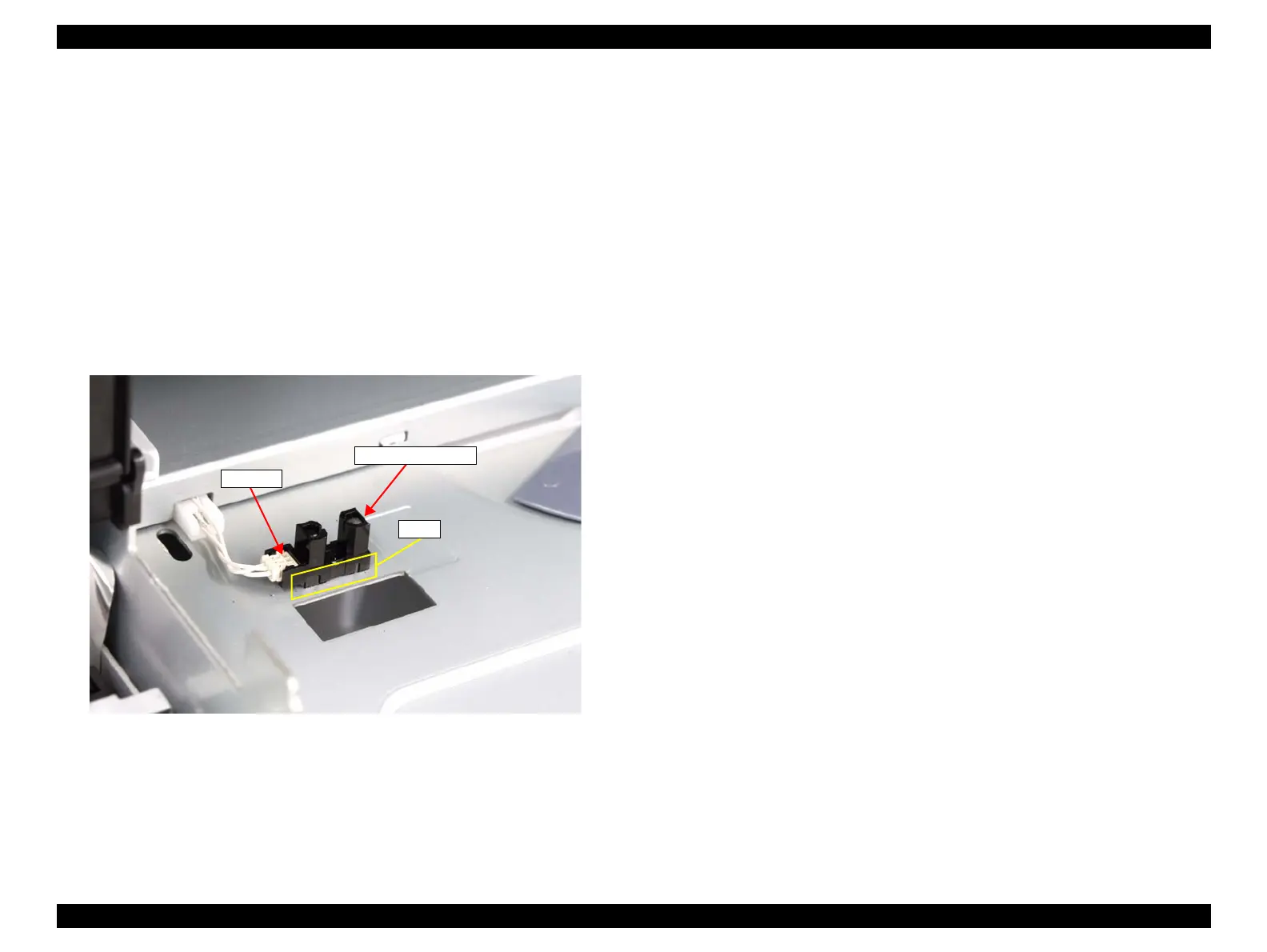

Figure 3-152. Removing the Paper Guide Sensor
Paper Guide Sensor
Connector
Hook
