5.4.2 Auto Color Measurement Device Mounter
CLEANING THE COLOR MEASUREMENT DEVICE
1. Remove the Color Measurement Device. (p255)
2. Blow off dust and dirt from the Color Measurement Device lens with air.

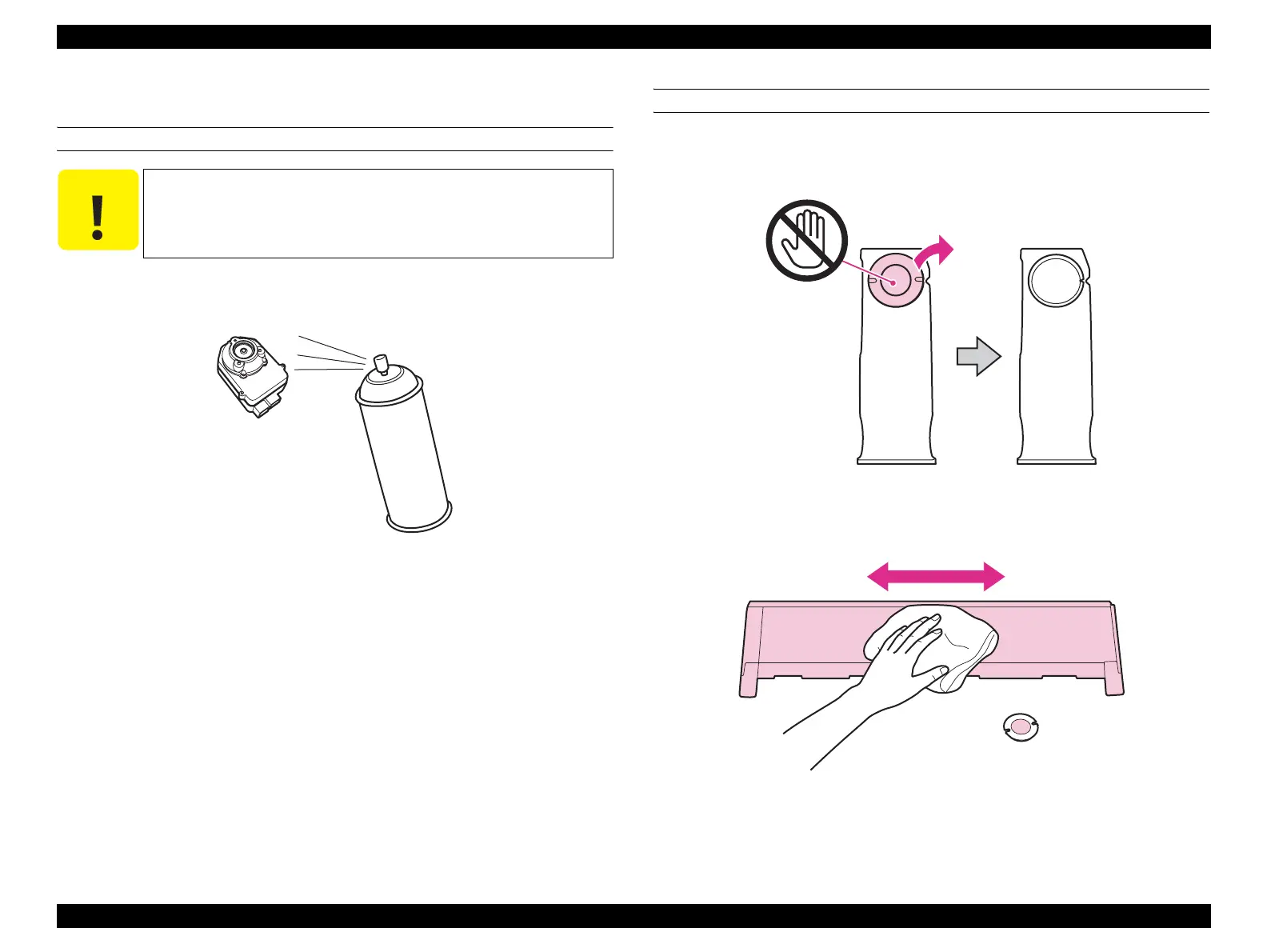

Figure 5-7. Cleaning the Color Measurement Device
CLEANING THE BACKING AND THE WHITE BASE TILE
1. Remove the backing and the white base tile holder. (p256)
2. Remove the white base tile from the holder.
Figure 5-8. Taking off the white base tile
3. Using soft and dry cloth, wipe off dirt on the surface of the backing and the white
base tile.
Figure 5-9. Cleaning the backing and the white base tile
C A U T I O N
 Never use flammable sprays near or inside the printer.
 Do not touch the lens of the Color Measurement Device.
