Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 222
Confidential
3.4.7.6 Roll Feeding Sensor
1. Remove the Right Roll Cover. (p151)
2. Disconnect the connector from the Roll Feeding Sensor.
3. Disengage the hook, and remove the Roll Feeding Sensor.

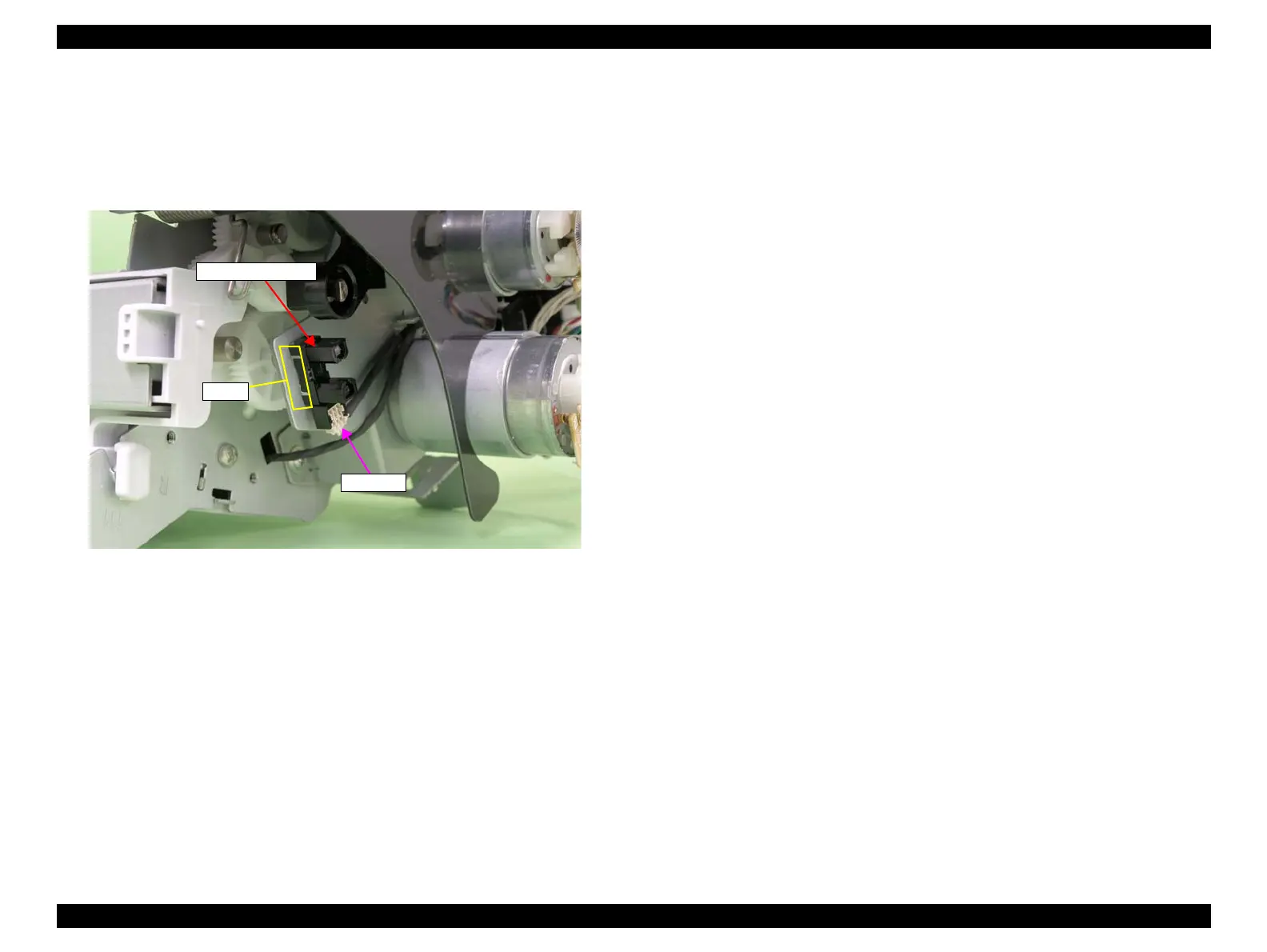

Figure 3-153. Removing the Roll Feeding Sensor
Roll Feeding Sensor
Hook
Connector
To Next Page
