3.4.2.17 Left Roll Cover/Right Roll Cover
 Left Roll Cover

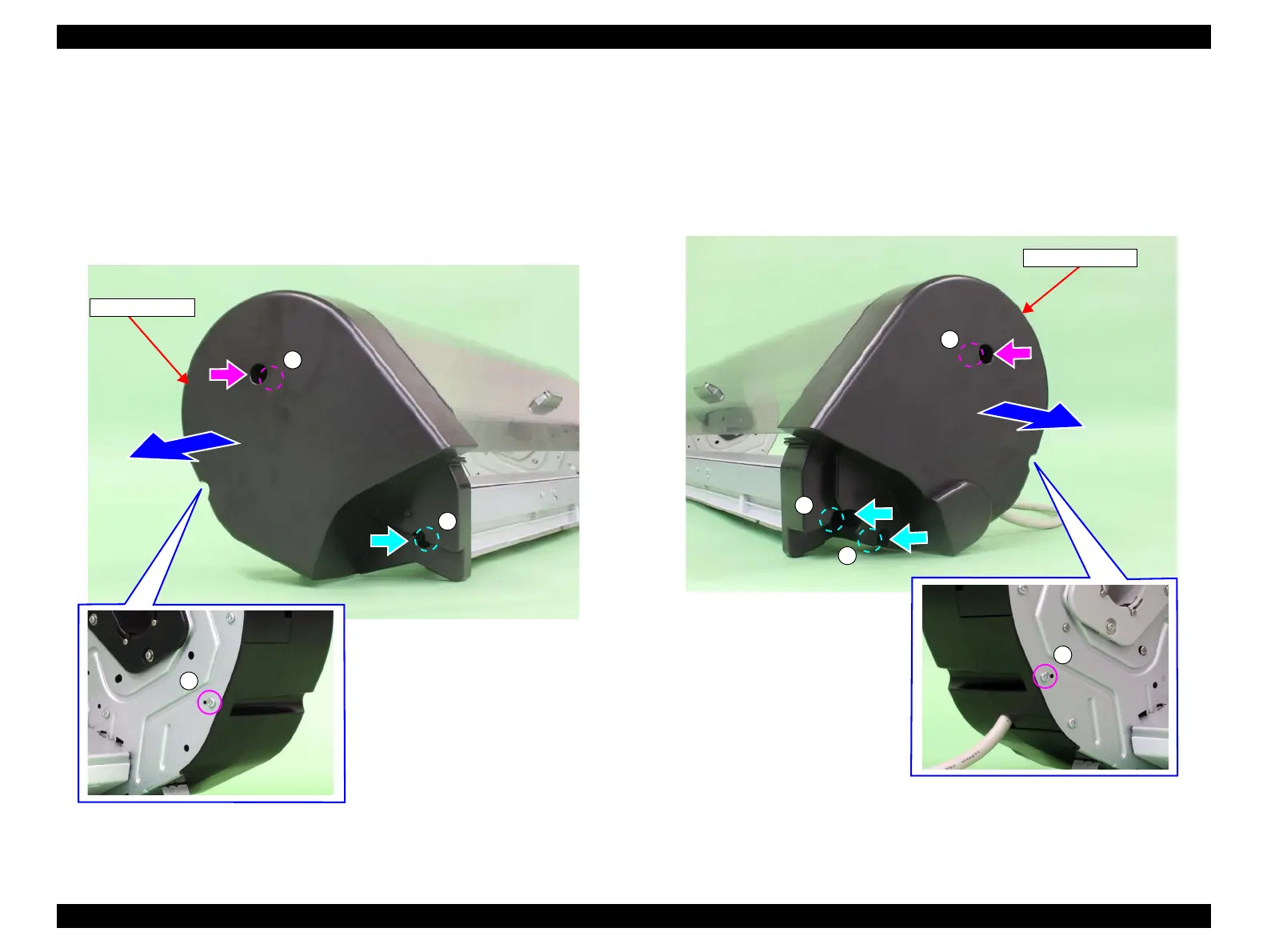

1. Remove the three screws that secure the Left Roll Cover.
A) Silver, Phillips, Bind P-tite M3x8: two pieces
B) Silver, Phillips, Round Washer Head P-tite M3x8: one piece
2. Remove the Left Roll Cover.
Figure 3-53. Removing the Left Roll Cover
 Right Roll Cover
1. Remove the four screws that secure the Right Roll Cover.
A) Silver, Phillips, Bind P-tite M3x8: two pieces
B) Silver, Phillips, Round Washer Head P-tite M3x8: two pieces
2. Remove the Right Roll Cover.
Figure 3-54. Removing the Right Roll Cover
A
B
A
Left Roll Cover
A
A
B
B
Right Roll Cover
