Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
APPENDIX Connection Diagram 436
Confidential

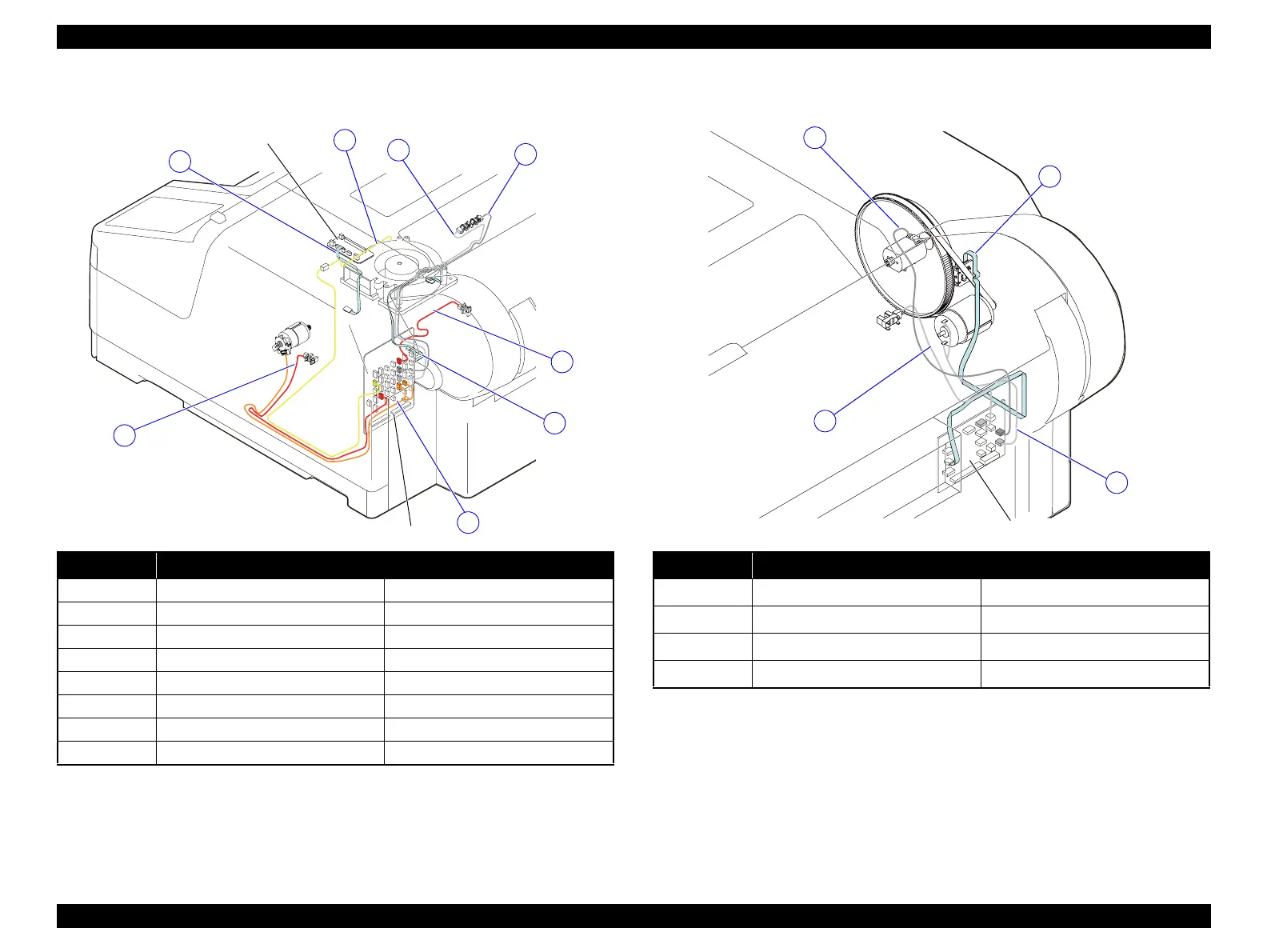

6.2.5 Paper Feed Mechanism 1 6.2.6 Paper Feed Mechanism 2
Cable No. Connection
1 Paper Thickness Sensor 2 SUB-B Board (CN209)
2 Paper Thickness Sensor 1 SUB-B Board (Cn208)
3 Suction Fan SUB-B Board (CN212)
4 PW Sensor SUB Board (CN103)
5 Edge Sensor SUB-B Board (CN220)
6 Edge Release Assy SUB-B Board (CN218/CN219)
7 PE Sensor SUB-B Board (CN210)
8 2nd PE Sensor SUB-B Board (CN211)
1
3
2
4
5
6
7
8
SUB-B Board
SUB Board
Cable No. Connection
1
PF Encoder SUB-C Board (CN303)
2
Release Motor SUB-C Board (CN305)
3
Release Assy SUB-C Board (CN307)
4
PF Motor SUB-C Board (CN302)
1
3
2
4
SUB-C Board
