Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 192
Confidential
3.4.5.7 2nd PE Sensor
1. Remove the Front Cover. (p142)
2. Remove the Right Upper Cover. (p138)
3. Remove the Control Panel Cover. (p136)
4. Remove the Right Cover. (p139)
5. Remove the Mid-Right Cover/Mid-Left Cover. (p150)
6. Remove the Rear Cover. (p144)
7. Remove the Rear Unit. (p145)
8. Remove the Printer Cover. (p133)
9. Remove the upper rear cover. (Step 7 in “3.4.5.9 Paper Thickness Sensor1, 2” (P.
195))
10. Disengage the two hooks that secure the “PAPER GUIDE,REAR”, and pull the
“PAPER GUIDE,REAR” to remove.

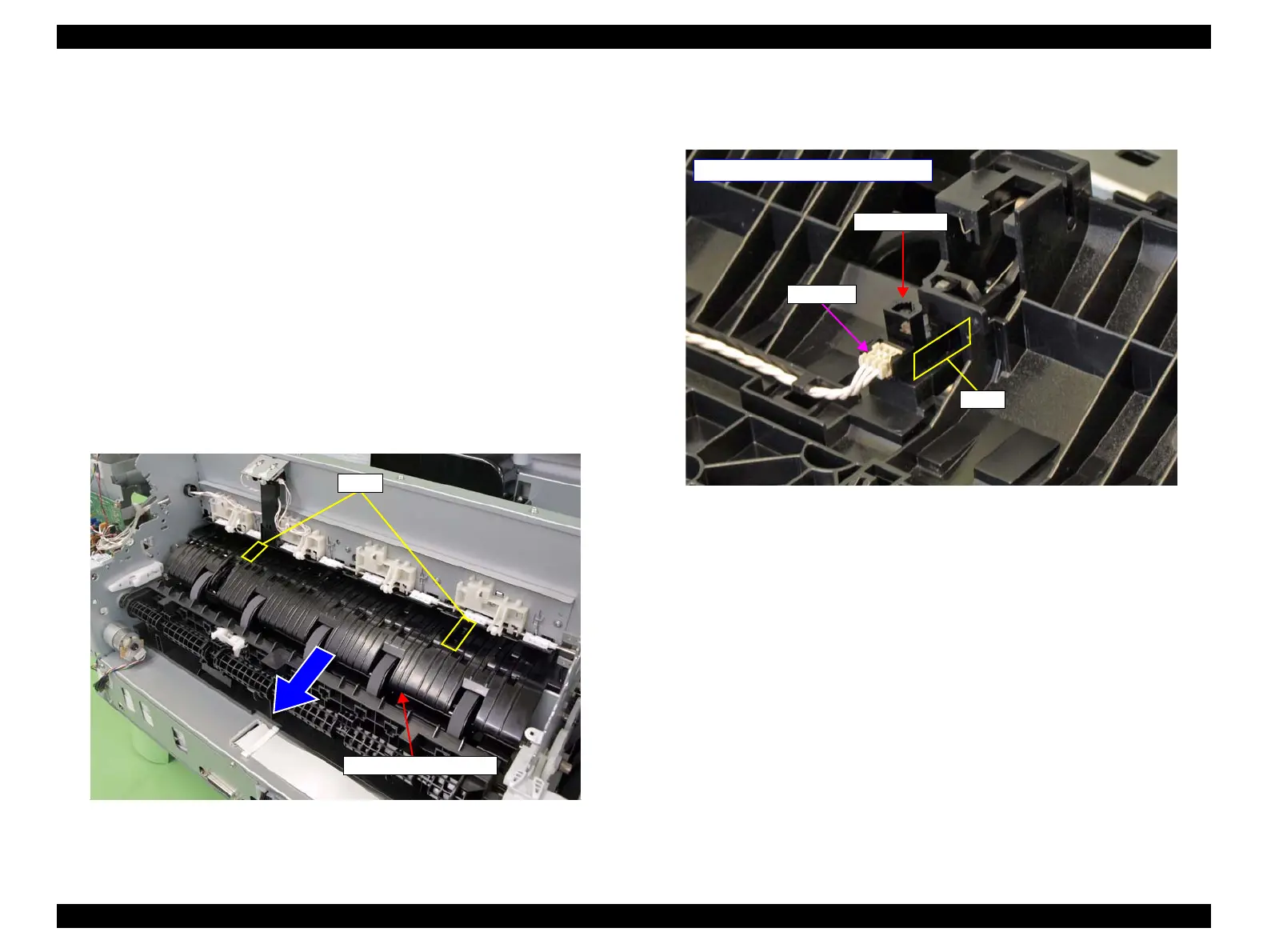

Figure 3-109. Removing the “PAPER GUIDE,REAR”
11. Disconnect the connector from the 2nd PE Sensor.
12. Disengage the hook, and remove the 2nd PE Sensor.
Figure 3-110. Removing the 2nd PE Sensor
“PAPER GUIDE,REAR”
Hooks
2nd PE Sensor
Hook
Connector
- Back side of “PAPER GUIDE,REAR” -
