Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 206
Confidential
3.4.6.4 Assist Roller Sensor/Retard Roller Sensor/
Pickup Unit Sensor
1. Remove the Front Cover. (p142)
2. Remove the Right Upper Cover. (p138)
3. Remove the Control Panel Cover. (p136)
4. Remove the Right Cover. (p139)
5. Remove the Mid-Right Cover. (p150)
6. Remove the SUB-B Board. (p162)
7. Release the harnesses from the five clamps.
8. Release the harnesses from the two saddles.

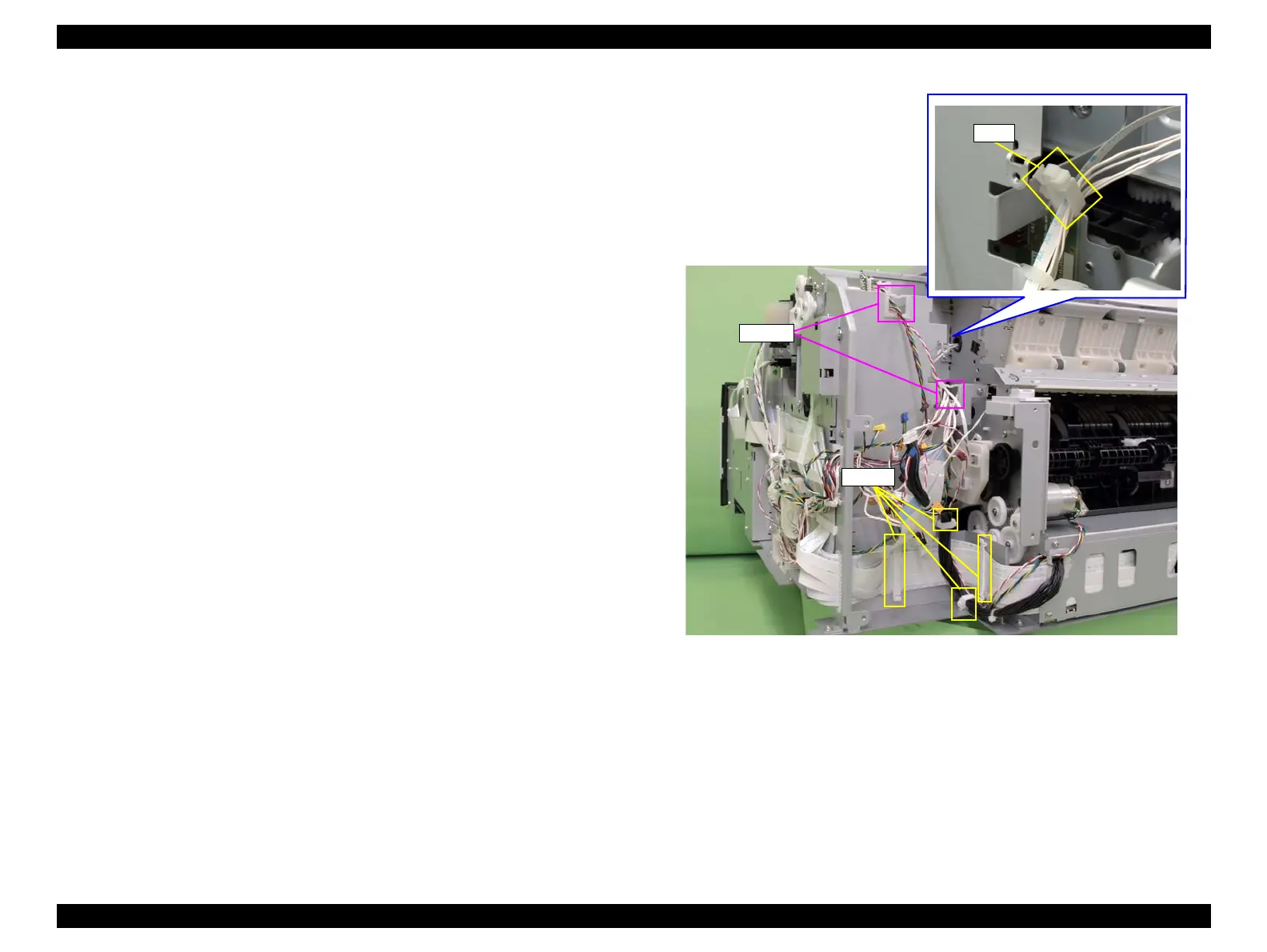

Figure 3-127. Releasing the harnesses
Saddles
Clamps
Clamp
To Next Page
