3.4.6.3 Pickup Roller
1. Turn the bushing in the direction of the arrow by pulling up the handle of the
bushing slightly.
2. Pull the lever in the direction of the arrow, and remove the shaft from the main
body frame.
3. Push in the hook and pull out the shaft in the direction of the arrow.
4. Remove the Pickup Unit.

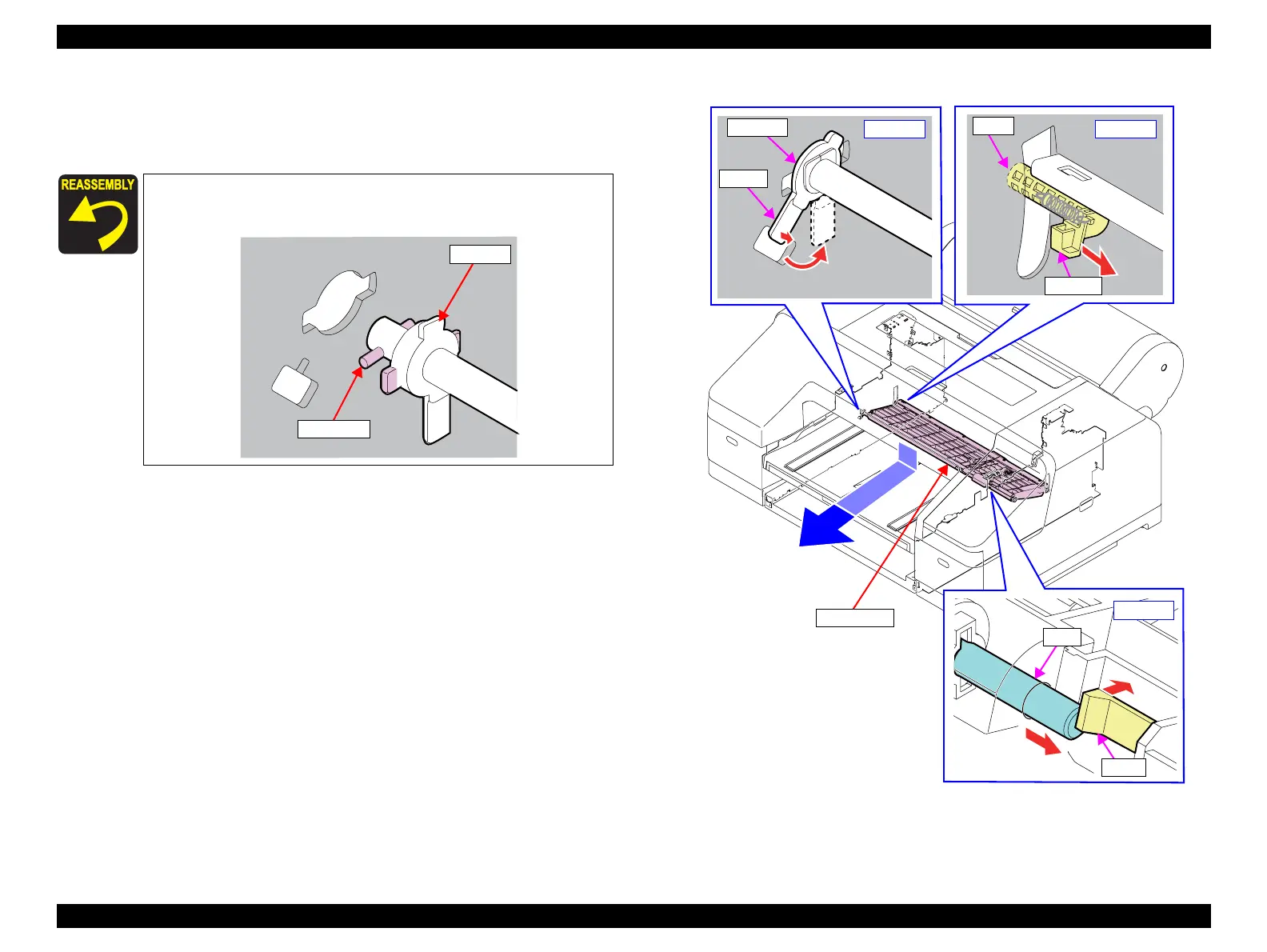

Figure 3-125. Removing the Pickup Unit
When installing the bushing to the main frame, align the spring pin
with the shape of the hole of the main frame.
Bushing
Spring pin
Handle
Shaft
Lever
Hook
Shaft
Pickup Unit
Step 1 Step 2
Step 3
Bushing
