3.4.7.4 Roll Feeding Motor Assy
1. Remove the Right Roll Cover. (p151)
2. Remove the SUB-D Board. (p164)
3. Remove the “HOLDER,ROLLER,RIGHT”. (Step 3 to Step 8 in “3.4.7.2 Roll
Lock Sensor” (P. 217))
4. Remove the Motor Assy. (Step 4 to Step 6 in “3.4.7.3 ATC Motor Assy” (P. 219))
5. Disconnect the connector from the Roll Feeding Motor Assy.
6. Remove the planetary gear.
7. Remove the two screws that secure the Roll Feeding Motor Assy, and remove the
Roll Feeding Motor Assy.
A) Silver, Phillips, Pan machine screw M2.6x4: two pieces

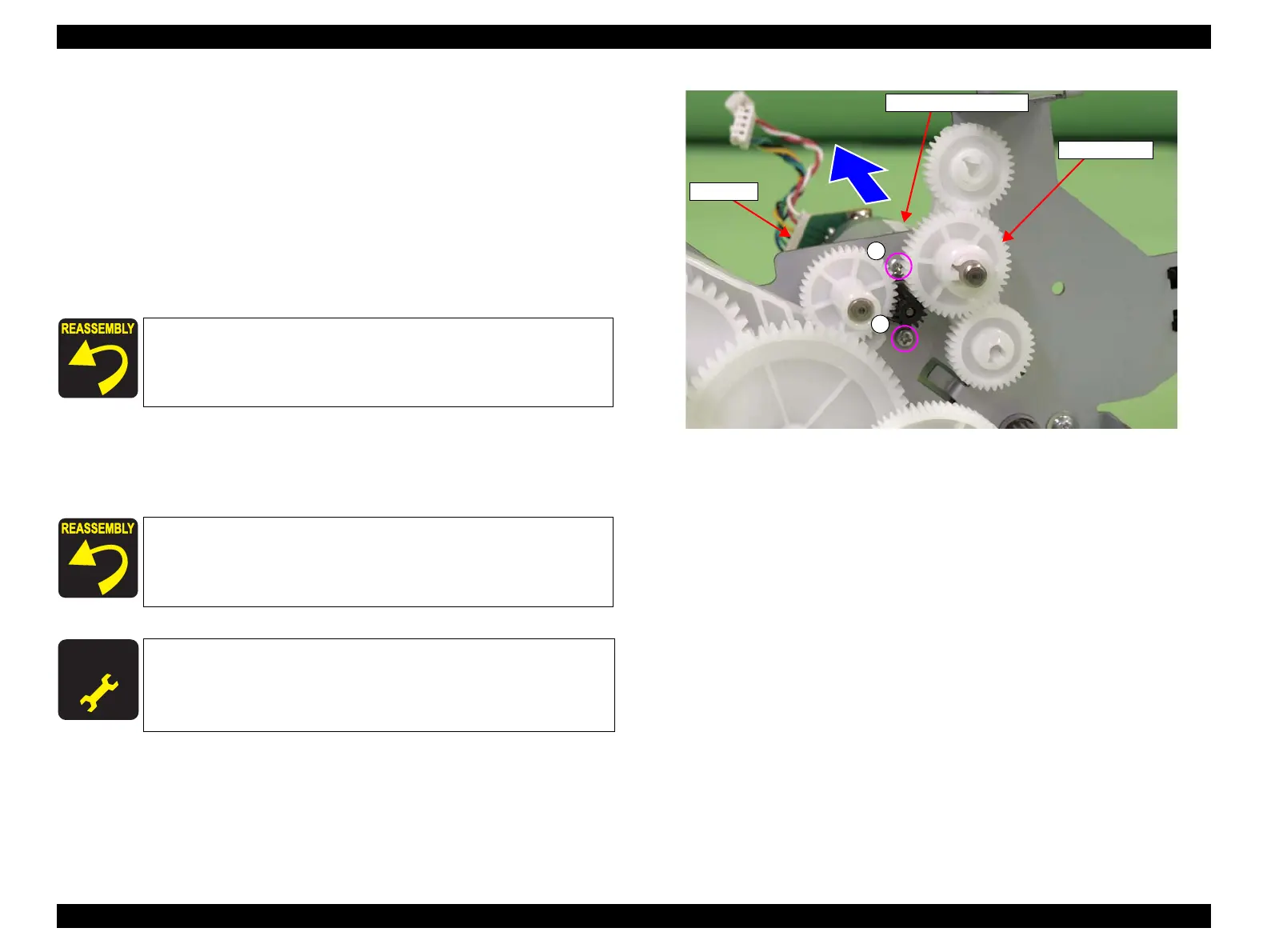

Figure 3-151. Removing the Roll Feeding Motor Assy
When installing the planetary gear, be careful of the installation
direction referring to Figure 3-151.
When installing the Roll Feeding Motor Assy, be careful of the
installation direction referring to Figure 3-151.
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 4 “Adjustment” (see p277) and perform
specified adjustment after replacing the Roll Feeding Motor Assy.
<Adjustment item>
Counter Reset (Roll Feeding Motor Counter)
Roll Feeding Motor Assy
A
A
Connector
Planetary gear
