Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 217
Confidential
3.4.7.2 Roll Lock Sensor
1. Remove the Right Roll Cover. (p151)
2. Remove the SUB-D Board. (p164)
3. Release the harnesses from the cable guides.
4. Release the roll unit connection cable from the cable guide and the holder.
5. Remove the inside cover.

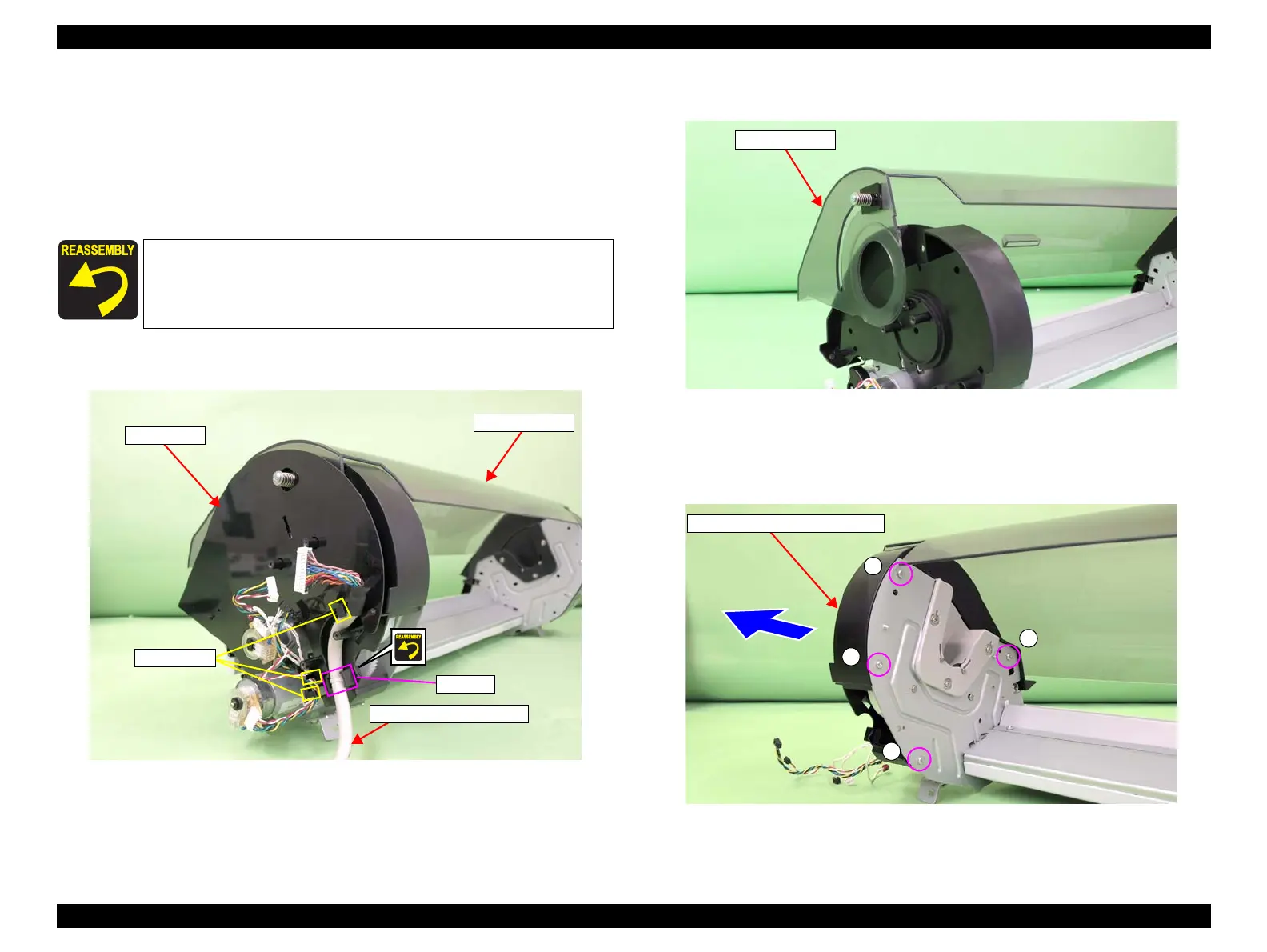

Figure 3-145. Removing the roll paper cover
6. Release and lift the roll paper cover.
Figure 3-146. Releasing the roll paper cover
7. Remove the four screws that secure the “BASE,COVER,ROLL,RIGHT”, and
remove the “BASE,COVER,ROLL,RIGHT”.
A) Silver, Phillips, Bind P-tite M3x8: four pieces
Figure 3-147. Removing the “BASE,COVER,ROLL,RIGHT”
When installing the roll unit connection cable, be sure to attach the
cable tie to the position of the holder.
Roll paper cover
Inside cover
Cable guides
Holder
Roll unit connection cable
Roll paper cover
“BASE,COVER,ROLL,RIGHT”
A
A
A
A
