Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 250
Confidential
17. Remove the three screws that secure the tube cover.
B) Silver, Phillips, Round Washer Head S-tite M3x6: three pieces
18. Remove the tube cover.
19. Release the Head FFC from the three cable holders.

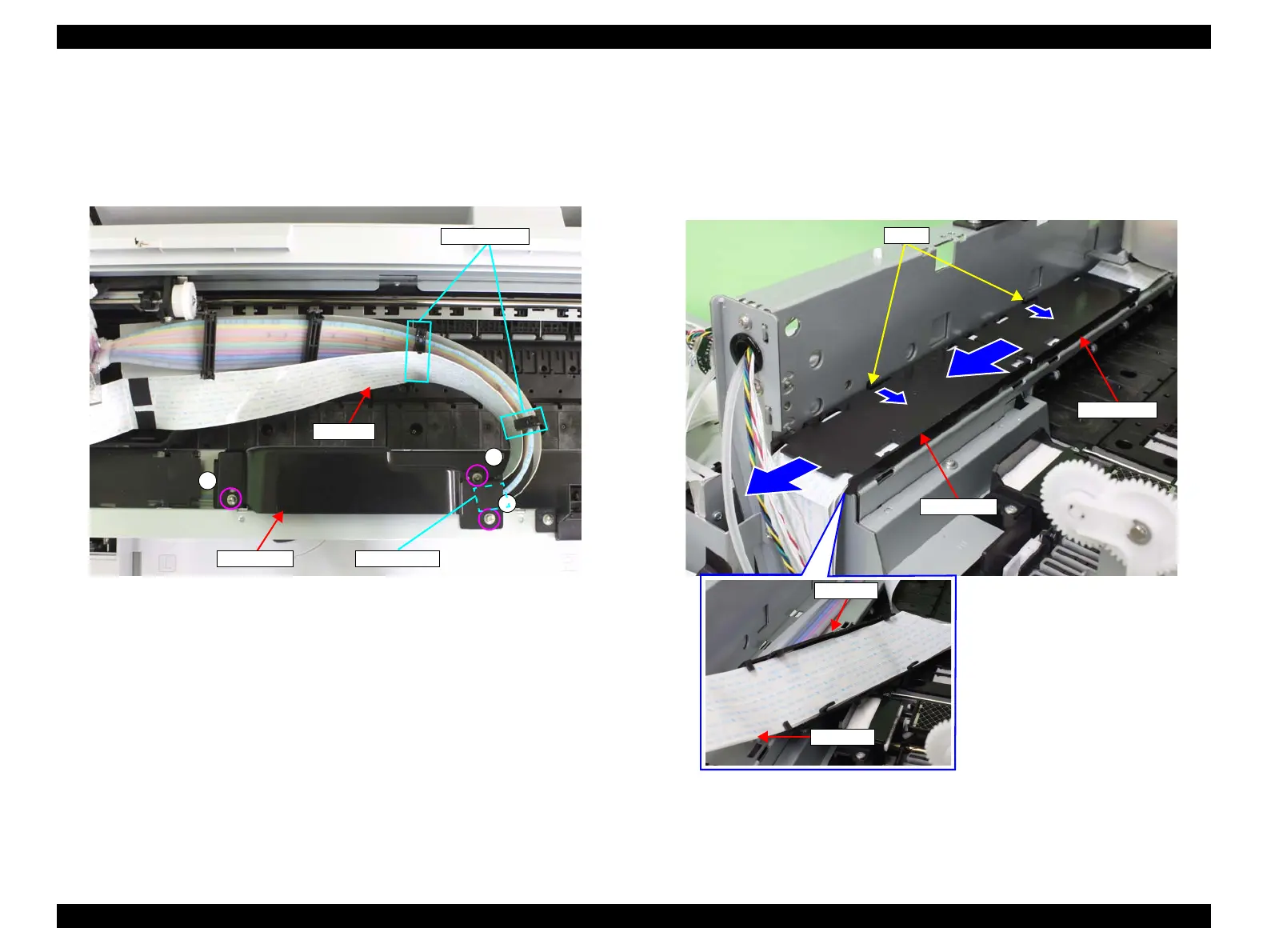

Figure 3-185. Removing the tube cover
20. Disengage the hook that secures the FFC cover 1, and slide the FFC cover 1 to the
right to remove it.
21. Disengage the hook that secures the FFC cover 2, and slide the FFC cover 2 to the
right to remove it.
22. Remove the FFC covers 1 and 2 from the Head FFC.
Figure 3-186. Removing the FFC covers
Tube cover
B
B
B
Cable holders
Cable holder
Head FFC
FFC cover 1
FFC cover 2
FFC cover
Head FFC
Hooks
