Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 158
Confidential
8. Disconnect the cable connected to the Power Supply Box.
9. Remove the clamp from the Power Supply Box.

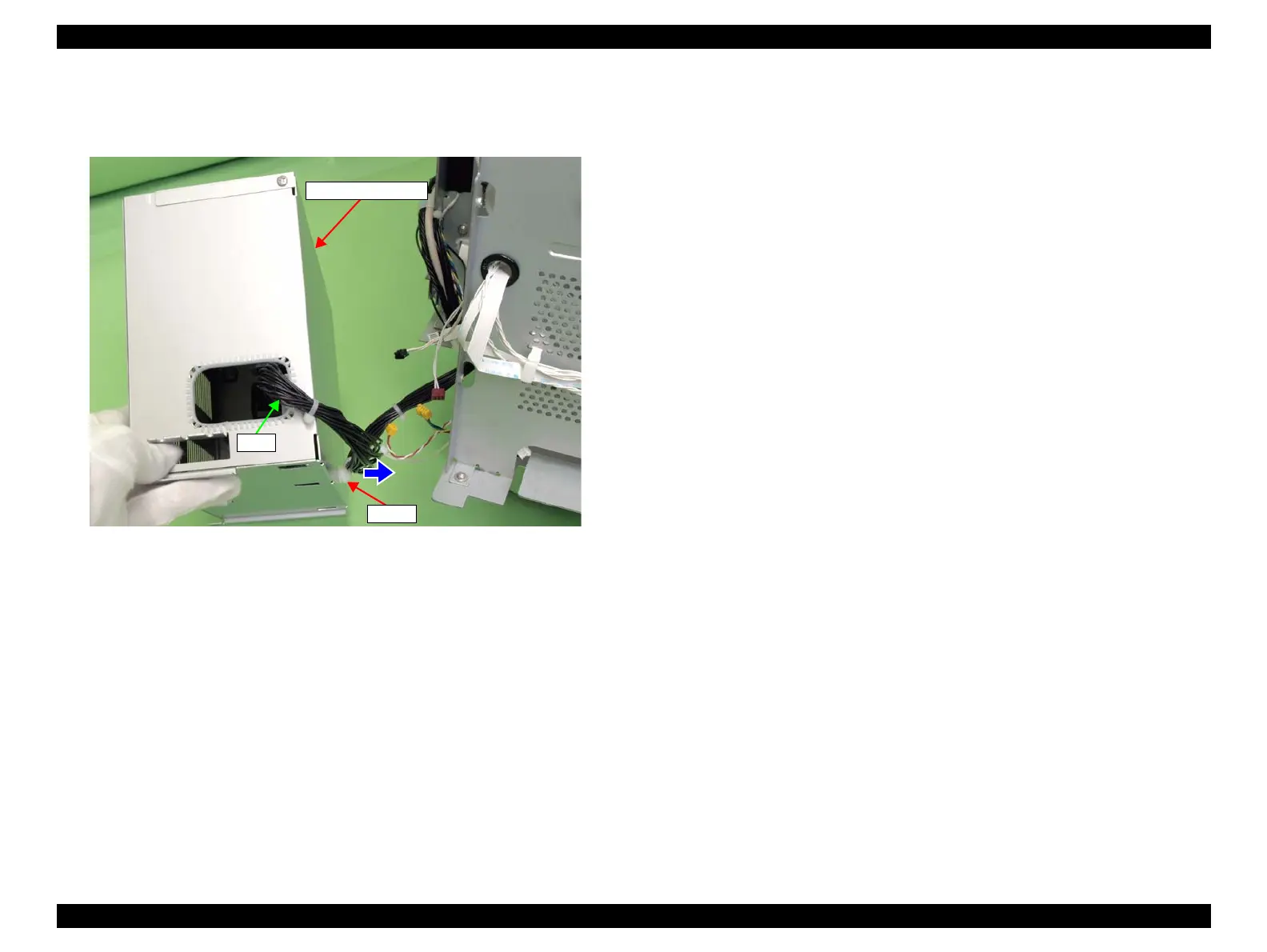

Figure 3-62. Removing the Power Supply Box
Power Supply Box
Cable
Clamp
